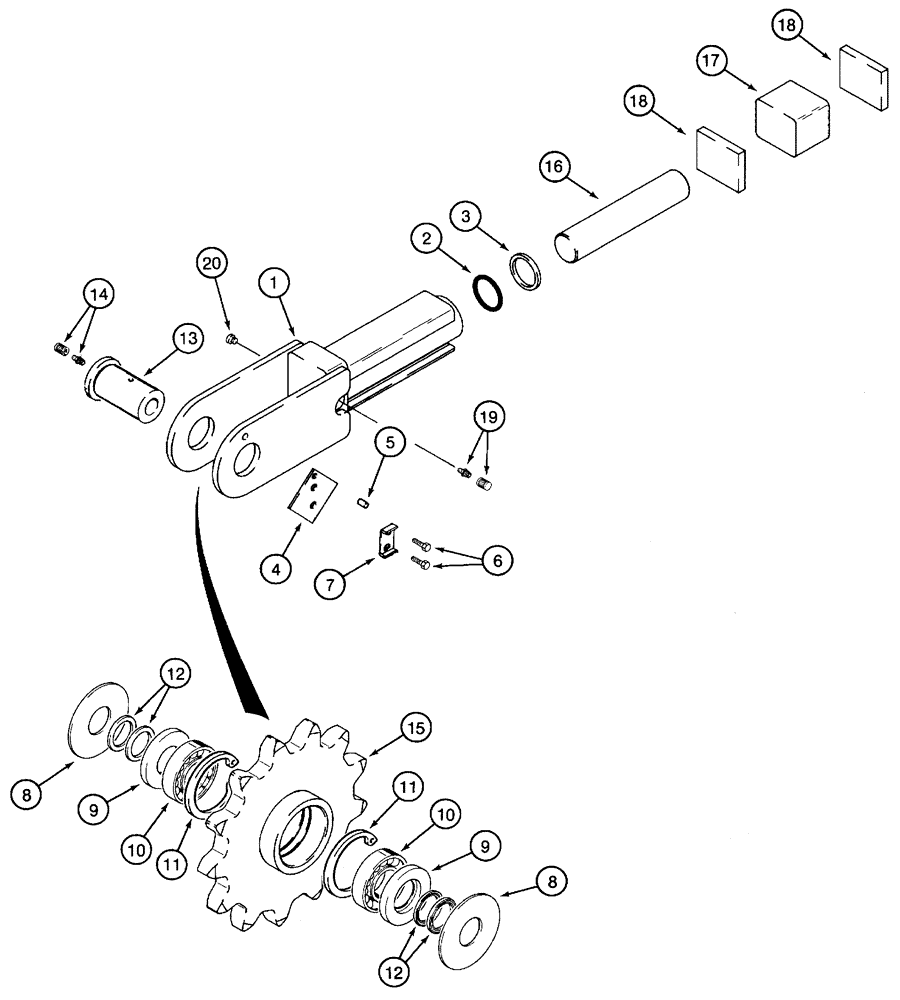

Запчасти Case 460 (9-53A) - TRENCHER BOOM END AND SPROCKET, EARLY PRODUCTION, STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

1

113116A1

END

- boom

1шт.

2

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

1шт.

3

H755009

RING

- backup

1шт.

4

113099A1

LARGE PLATE

RETAINER - idler sprocket plate

1шт.

5

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened

1шт.

6

414-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex, 3/8 NF x 1 inch

2шт.

7

113100A1

STRAP

- bolt lock

1шт.

8

113230A1

WASHER

- wear, special

2шт.

9

113101A1

SEAL

HOUSING - seal

2шт.

10

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - sprocket

2шт.

11

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, 3.562", Int, #354

2шт.

12

D127866

SEAL

- bearing

4шт.

13

113105A1

PIN

- sprocket

1шт.

14

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

15

113118A1

SPROCKET ASSY.

SPROCKET - boom end

1шт.

16

H434551

ROD

- adjuster, cylinder

1шт.

17

113111A1

BLOCK

- cushion, boom end

1шт.

18

113110A1

LARGE PLATE

PLATE - cushion

2шт.

19

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

FITTING - grease, straight, with cap, 1/8 PT x 1 inch

1шт.

20

H114728

PLUG

- hex socket, 3/8 inch PT

1шт.
