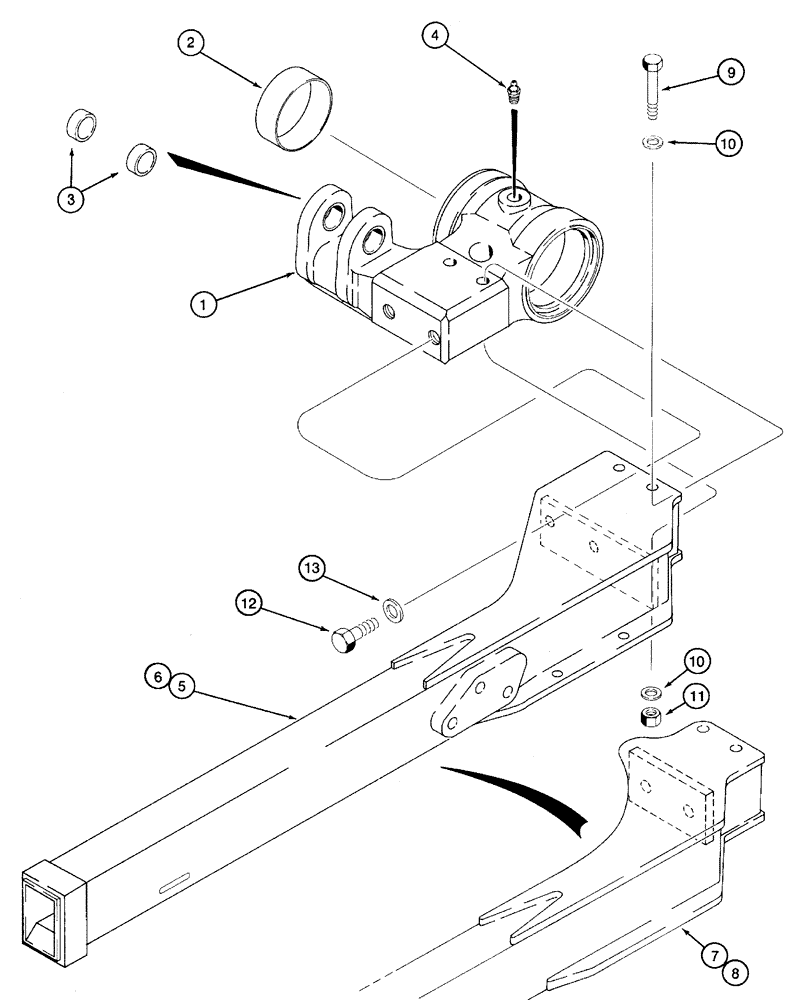

Запчасти Case 460 (9-50) - TRENCHER BOOMS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

116743A1

ANCHOR

BRACKET - mounting, trencher boom, planetary drive trencher, see figure 9-44 for direct drive trencher housing and boom mounting bracket

1шт.

2

H437509

BUSHING

- nylon, composite, boom pivot, used with 116743A1 bracket

2шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 25 mm (1 inch) long, bracket, lift cylinder pivot, used with 116743A1 bracket

2шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - 1/8 PT x 5/8

1шт.

5

113119A1

BOOM

- trencher, 4 foot, planetary drive trencher

1шт.

113119A1 and 113120A1 booms use 131116A1 boom end. See figure 9-53A for boom end identification.

1шт.

5

135212A1

BOOM

- trencher, 4 foot, planetary drive trencher

1шт.

135203A1, 135204A1, 135212A1, and 135213A1 booms use 139792A2 boom end. See figure 9-54 for boom end identification.

1шт.

6

113120A1

BOOM

- trencher, 5 foot, planetary drive trencher

1шт.

113119A1 and 113120A1 booms use 131116A1 boom end. See figure 9-53A for boom end identification.

1шт.

6

135213A1

BOOM

- trencher, 5 foot, planetary drive trencher

1шт.

135203A1, 135204A1, 135212A1, and 135213A1 booms use 139792A2 boom end. See figure 9-54 for boom end identification.

1шт.

7

135203A1

BOOM

- trencher, 4 foot, direct drive trencher

1шт.

135203A1, 135204A1, 135212A1, and 135213A1 booms use 139792A2 boom end. See figure 9-54 for boom end identification.

1шт.

8

135204A1

BOOM

- trencher, 5 foot, direct drive trencher

1шт.

135203A1, 135204A1, 135212A1, and 135213A1 booms use 139792A2 boom end. See figure 9-54 for boom end identification.

1шт.

9

426-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- hex, 3/4 NC x 6-1/2 inch, grade 8

2шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

2шт.

11

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

12

426-1632

BOLT,Hex, 1" - 8 x 2", Gr 8

- hex, 1 NC x 2 inch, grade 8

2шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.
