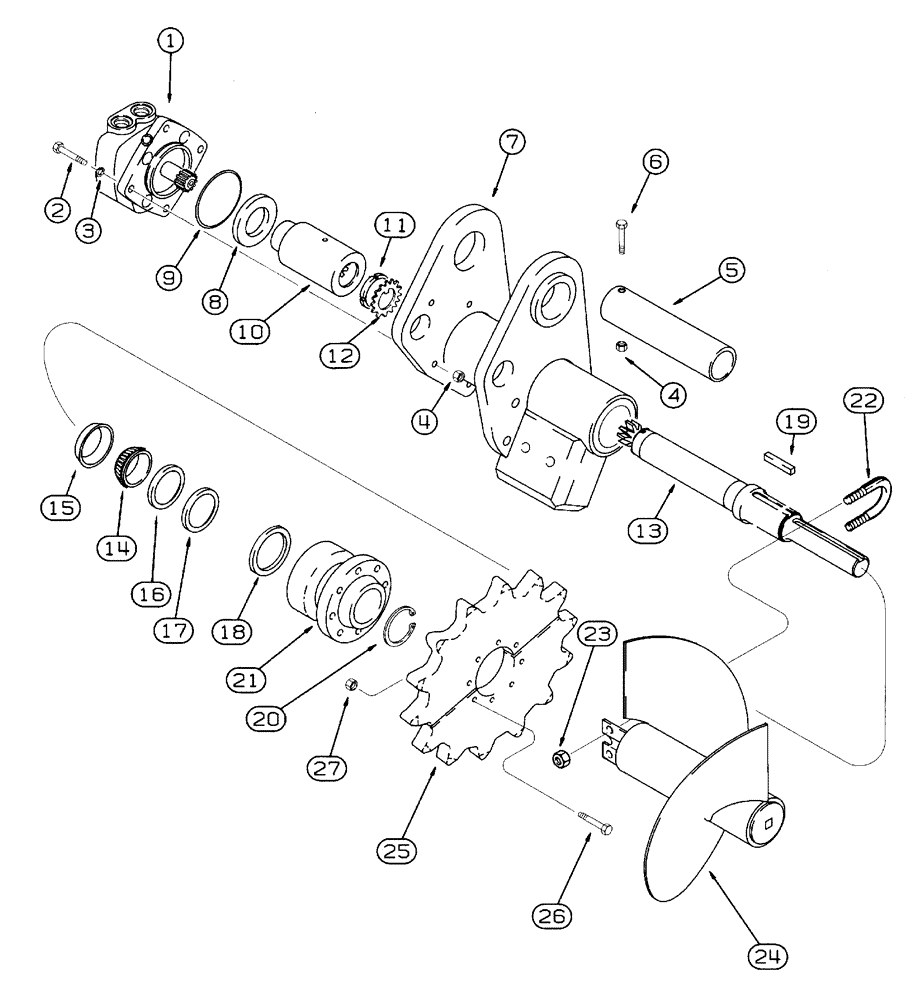

Запчасти Case 460 (9-44) - TRENCHER DRIVE, DIRECT DRIVE TRENCHER (09) - CHASSIS/ATTACHMENTS

1

117981A1

MOTOR

ASSEMBLY - trencher drive, direct drive trencher, parts list figure 8-84

1шт.

2

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

3

H274894

WASHER

- flat, special

4шт.

4

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

5шт.

5

121474A1

PIN

- pivot

1шт.

6

426-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

- hex, 1/2 NC x 4-3/4 inch, grade 8

1шт.

7

121467A1

HOUSING

AND BRACKET - trencher drive and boom mounting

1шт.

8

H150169

WASHER

- thrust, trencher drive coupler

1шт.

9

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide

1шт.

10

121216A2

COUPLING

COUPLER - trencher drive, replaces 121216A1 coupler, must be used with 221523A1 shaft, Ref. 13

1шт.

11

54-1010

LOCK NUT,Bearing, 1.9685" Bore

NUT - bearing lock, N-10

1шт.

12

55-1010

LOCK WASHER,Type TW-10

WASHER - bearing lock, W-10

1шт.

13

221523A1

SHAFT

- trencher drive, replaces 123378A1 shaft

1шт.

14

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE - tapered roller bearing, trencher drive shaft

2шт.

15

376463C1

BEARING CUP

CUP - tapered roller bearing, 3-15/64 inch OD

2шт.

16

118155A1

OIL SEAL

- trencher drive shaft

1шт.

17

122443A1

SEAL

HOUSING - seal

1шт.

18

L113522

SEAL

- U-cup

1шт.

19

123506A1

KEY

- drive

1шт.

20

L59033

SNAP RING,#212, Ext

Ring, Snap, #212, Ext

1шт.

21

123490A1

HUB

- sprocket

1шт.

22

H170241

HARDWARE

U-BOLT - auger retaining

1шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

24

H551523

AUGER

- dirt

1шт.

25

122432A1

SPROCKET ASSY.

SPROCKET - split drive, includes two halves, 14 teeth

1шт.

26

80293R1

BOLT,Hex, 7/16" - 20 x 2 1/4", Gr 8

- hex, special, grade 8

8шт.

27

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

8шт.
