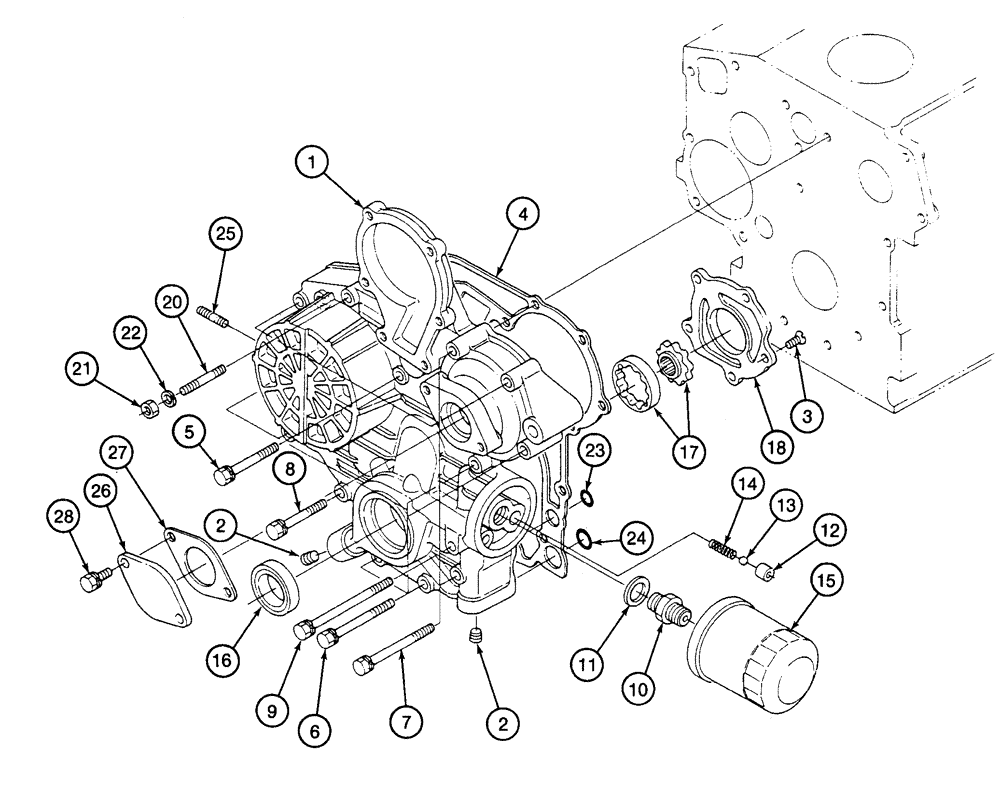

Запчасти Case 460 (2-14) - FRONT GEAR COVER, KUBOTA V1505-B ENGINE (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

COVER - gear, front

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

2

200400A1

PLUG

- cover

2шт.

Components of 221646A1 front gear cover assembly.

1шт.

3

125274A1

SCREW,Sl Flat Hd

BOLT - flat head slotted, special

5шт.

Components of 221646A1 front gear cover assembly.

1шт.

4

125276A1

GASKET

GASKET - front gear cover

1шт.

5

126125A1

CAPTIVE WASHER SCREW

- with lock washer

3шт.

6

126126A1

BOLT,Hex

BOLT - hex, with lock washer

6шт.

7

126127A1

CAPTIVE WASHER SCREW

- hex, with lock washer

2шт.

8

125277A1

BOLT,Hex

- hex, with lockwasher

1шт.

9

125278A1

BOLT,Hex

- hex, with lock washer

1шт.

10

1959196C1

FITTING

ADAPTER - filter

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

11

126124A1

WASHER

- flat, special

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

12

125269A1

SEAT/SLOT

SEAT - valve

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

13

125270A1

BALL

- seat

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

14

125268A1

SPRING

- valve

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

15

125282A1

ENGINE OIL FILTER

FILTER - engine oil (cartridge)

1шт.

16

125280A1

OIL SEAL

SEAL - oil

1шт.

17

125271A1

HYDRAULIC PUMP

ROTOR - oil pump (two-parts)

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

18

125273A1

COVER

- oil pump

1шт.

Components of 221646A1 front gear cover assembly.

1шт.

20

125279A1

STUD

- front gear cover

1шт.

21

1959205C1

NUT

- hex, special

1шт.

22

221638A1

SPRING WASHER

- spring

1шт.

23

125281A1

O-RING

- front gear cover

2шт.

24

1959201C1

O-RING

- front gear cover

2шт.

25

1959319C1

BOLT

- hex, special

2шт.

26

125283A1

PLATE

- access, front gear cover

1шт.

27

200072A1

GASKET

- access cover plate

1шт.

28

1959319C1

BOLT

1шт.
