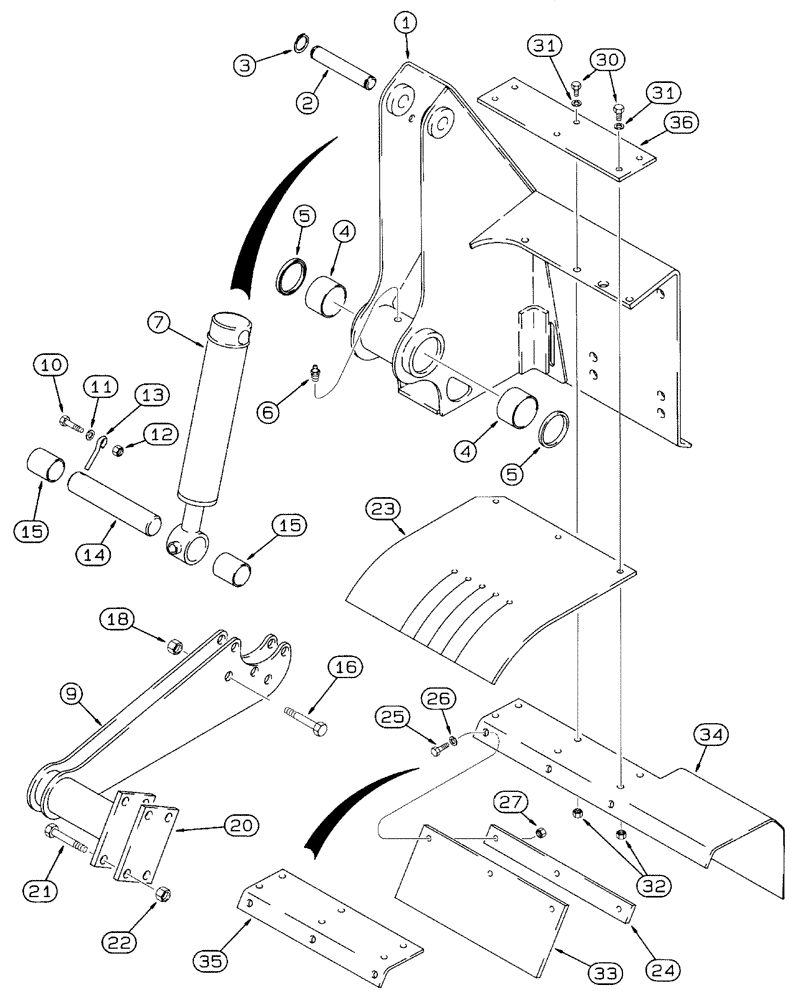

Запчасти Case 460 (9-38) - TRENCHER FRAME AND MOUNTING, DIRECT DRIVE TRENCHER (09) - CHASSIS/ATTACHMENTS

1

120690A1

FRAME ASSY

FRAME - direct drive trencher

1шт.

2

125874A1

PIN

- boom lift, cylinder closed end

1шт.

3

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

4

118548A1

BEARING,76.47 mm ID x 82.68 mm OD x 50.8 mm

- pivot, boom

2шт.

5

L128724

SEAL

- bom pivot bearing

2шт.

6

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

7

114705A1

CYLINDER

ASSEMBLY - 76 (3) ID x 305 mm (12 inch) stroke, boom lift, parts list figure 8-80

1шт.

8

H438908

DECAL

- Danger, sharp moving parts, keep clear, 110 x 110 mm long, not shown, see figure 9-110 for decals

3шт.

9

122434A1

MOUNTING PARTS

BRACKET - mounting, crumber

1шт.

10

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

12

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

13

H313981

PIN

- retaining

1шт.

14

121475A1

PIN

- mounting, boom lift cylinder, rod end

1шт.

15

126434A1

SPACER

- tube, pin

2шт.

16

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

- hex, 5/8 NC x 3-3/4 inch, grade 8

4шт.

18

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

19

H438999

DECAL

- Danger, sharp moving parts, keep clear, not shown, see figure 9-110 for decals

2шт.

20

106807A1

LARGE PLATE

PLATE - mounting, crumber

1шт.

21

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

22

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

23

131782A1

DEFLECTOR

- dirt, upper

1шт.

24

106798A1

STRIP

- mounting, dirt deflector

1шт.

25

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

26

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

3шт.

27

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

29

H438908

DECAL

- Danger, sharp moving parts, keep clear, 110 x 110 mm long, not shown, see figure 9-110 for decals

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

6шт.

31

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

6шт.

32

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

6шт.

33

106797A1

DEFLECTOR

- dirt, lower

1шт.

34

130750A1

EXTENSION ASSY.

EXTENSION - dirt deflector, used on models without Hydra-Borer option

1шт.

35

131784A1

ANGLE

EXTENSION - dirt deflector, used on models with Hydra-Borer option

1шт.

36

131781A1

LARGE PLATE

PLATE - extension

1шт.
