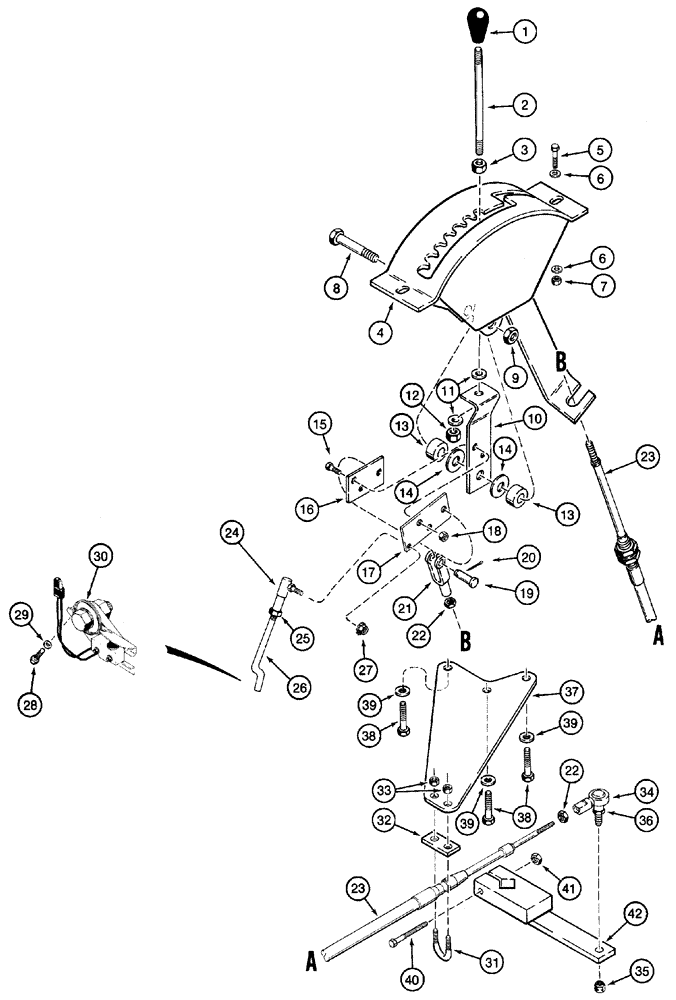

Запчасти Case 460 (9-36) - ATTACHMENT SPEED CONTROL (09) - CHASSIS/ATTACHMENTS

1

A14051

GRIP

KNOB - control lever, attachment speed control lever

1шт.

2

114524A1

ROD

- control

1шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

4

118131A1

CONTROL

HOUSING - control lever

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

7

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

10

H434691

LEVER

- control, attachment speed

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

12

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

13

H428284

SPACER

- lever

2шт.

14

H256305

WASHER

- flat, special

2шт.

15

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

16

H433515

PLATE

- cable mounting

1шт.

17

H435825

LARGE PLATE

PLATE - cable and ball joint mounting

1шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

19

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

1шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

21

213-115

ADJUSTABLE CLEVIS,5/16" - 24

CLEVIS, ADJUSTABLE, F, Cable end 5/16"-24

2шт.

22

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

23

118130A1

CABLE

- attachment speed control

1шт.

24

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball, switch actuator rod end

1шт.

25

225-14210

NUT,#10-32

1шт.

26

H435816

ROD

- ball joint to switch actuator

1шт.

27

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

29

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

30

H673443

SWITCH

ASSEMBLY - neutral start, parts list figure 4-20

1шт.

31

H166421

HARDWARE

U-BOLT - 1/4 inch NC, cable retaining

1шт.

32

H373779

LARGE PLATE

SPACER - cable

1шт.

33

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

34

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

1шт.

35

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

36

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

37

118274A1

PLATE

- tandem pump control

1шт.

38

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

3шт.

39

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

3шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

41

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

42

118141A2

LEVER

- tandem pump control

1шт.
