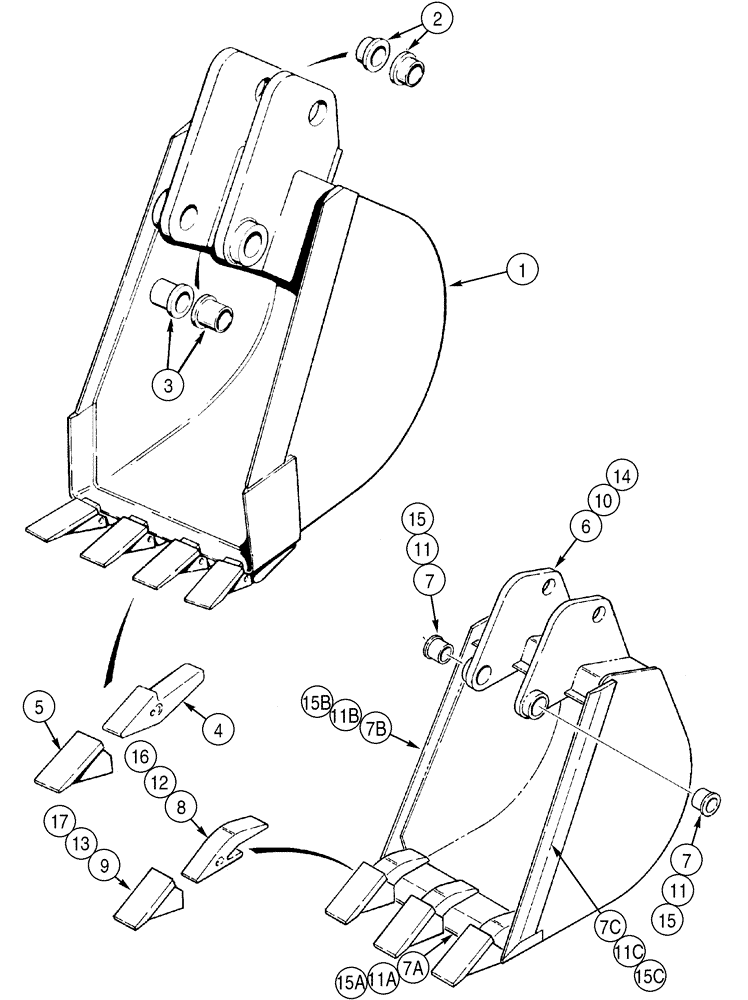

Запчасти Case 460 (9-30) - BACKHOE BUCKETS, STANDARD BUCKETS, D100 BACKHOE, BUCKET WITH CYLINDER PIVOT BUSHINGS (09) - CHASSIS/ATTACHMENTS

1

H905174

BUCKET - standard, order from Machinery Price List, 508 mm (20 inch) with cylinder pivot bushings, includes: Refs. 2 - 5

1шт.

2

H50823

BUSHING

- cylinder pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

4

H36657

TOOTH

SHANK - tooth

4шт.

5

T41166

TOOTH

POINT - tooth

4шт.

6

134114A1

BUCKET

- standard, order from Machinery Price List, 344 mm (13-1/2 inch) without cylinder pivot bushings, includes: Refs. 7 - 9

1шт.

7

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

7a

H438604

EDGE

- cutting, 344 mm (13-1/2 inch)) bucket

1шт.

7b

H437364

EDGE

- side cutting, LH

1шт.

7c

H437365

EDGE

- side cutting, RH

1шт.

H672429

TOOTH

ASSEMBLY - backhoe bucket, includes: Refs. 8 and 9

3шт.

8

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

9

D27748

TOOTH

POINT - bucket tooth, standard

1шт.

10

134115A1

BUCKET

- standard, order from Machinery Price List, 458 mm (18 inch) without cylinder pivot bushings, includes: Refs. 11 - 13

1шт.

11

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- bucket pivot

2шт.

11a

H438593

EDGE

- cutting, bucket, 458 mm (18 inch) wide

1шт.

11b

H437364

EDGE

- side cutting, LH

1шт.

11c

H437365

EDGE

- side cutting, RH

1шт.

H672429

TOOTH

ASSEMBLY - backhoe bucket, includes: Refs. 12 and 13

4шт.

12

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

13

D27748

TOOTH

POINT - bucket tooth, standard

1шт.

14

134116A1

BUCKET

- standard, order from Machinery Price List, 610 mm (24 inch) without cylinder pivot bushings, includes: Refs. 15 - 15C

1шт.

15

H561842

BUSHING - bucket pivot

2шт.

15a

H438543

EDGE

- cutting, bucket, 610 mm (24 inch) wide

1шт.

15b

H437364

EDGE

- side cutting, LH

1шт.

15c

H437365

EDGE

- side cutting, RH

1шт.

H672429

TOOTH

ASSEMBLY - backhoe bucket, includes: Refs. 16 and 17

4шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

17

D27748

TOOTH

POINT - bucket tooth, standard

1шт.
