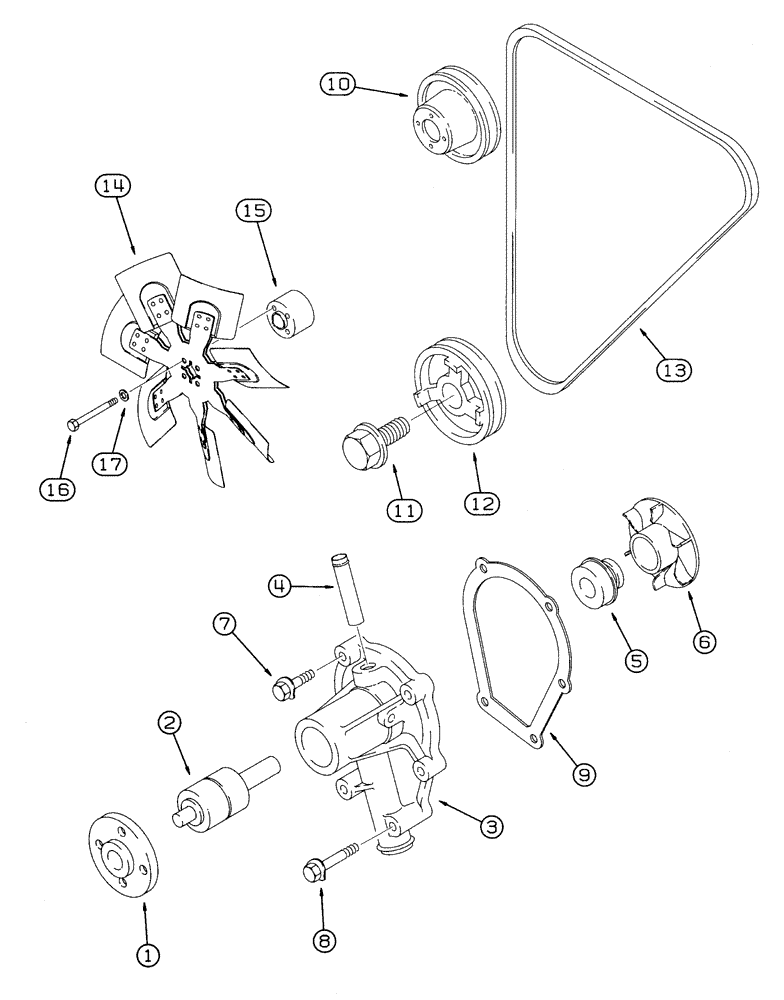

Запчасти Case 460 (2-12) - WATER PUMP SYSTEM AND ENGINE COOLING FAN, KUBOTA V1505-B ENGINE (02) - ENGINE

125285A1

PUMP, WATER

PUMP ASSEMBLY - water, when replacing complete pump, order 200058A1 pump assembly system, includes: Refs. 1 - 6

1шт.

200058A1

WATER PUMP

PUMP ASSEMBLY - water, no service of component parts, Refs. 1 through 6 are service components of 125285A1 pump only system, includes: Refs. 1 - 6

1шт.

1

125290A1

FLANGE

- water pump system

1шт.

2

125286A1

BALL BEARING

BEARING - water pump system

1шт.

3

NSS

NOT SOLD SEPARAT

PUMP - water system

1шт.

4

125289A1

RIGID TUBE

TUBE - water return system

1шт.

5

125287A1

SEAL

- water pump, mechanical system

1шт.

6

125288A1

IMPELLER

- water pump system

1шт.

7

200692A1

BOLT

- hex, with lock washer, water pump system

4шт.

8

126130A1

CAPTIVE WASHER SCREW

- hex, with lock washer, water pump system

2шт.

9

125291A1

GASKET

- water pump, used with 125285A1pump system

1шт.

9

200063A1

SEAL

GASKET - water pump, used with 200058A1 pump system

1шт.

10

125567A1

PULLEY

- fan, water pump system

1шт.

11

125569A1

BOLT

- fan drive pulley, water pump system

1шт.

12

125568A1

PULLEY

- fan drive, water pump system

1шт.

13

125570A1

V-BELT

V-BELT, Fan, Water Pump System

1шт.

14

332450A1

FAN

engine cooling, suction, plastic (replaces 107402A2 metal fan) mounting

1шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.

15

117069A1

SPACER

engine cooling fan, long, used with 107402A2 metal fan mounting

1шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.

15a

373451A1

SPACER

engine cooling fan, short, used with 332450A1 plastic fan, not shown mounting

1шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.

16

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

- hex, 6 - 1.0 x 60 mm, Used with 107402A2 metal fan, Engine cooling and mounting

4шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.

16a

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

Used with 332450A1 Plastic fan, Not shown, Engine cooling and mounting Hex, M6 x 30, 8.8, Full Thd

4шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.

17

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- flat, 1/4 x 1/2 x 3/64 inch, engine cooling and mounting

4шт.

Refs. 14 - 17 are not part of 111088A2 Kubota V1505-B engine assembly.

1шт.
