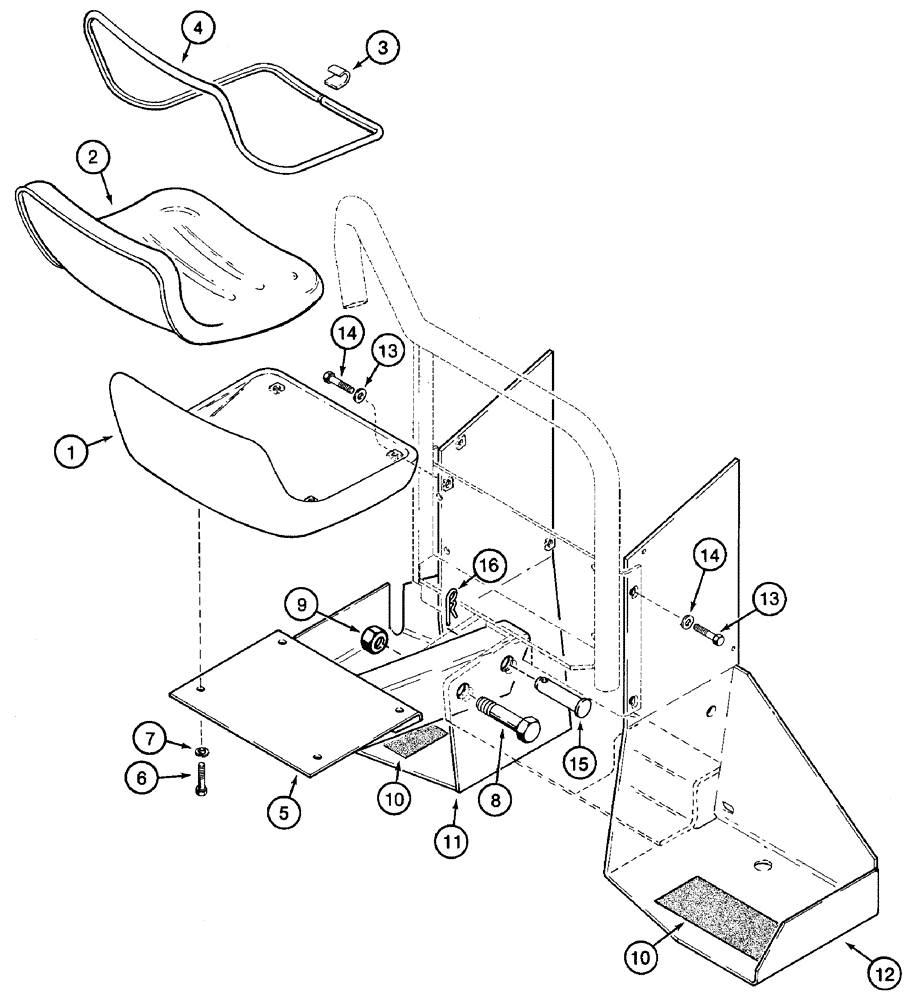

Запчасти Case 460 (9-22) - SEAT, SEAT MOUNTING, AND FOOT GUARDS, D100 BACKHOE (09) - CHASSIS/ATTACHMENTS

179332A1

SEAT

ASSEMBLY - operator's, gray, gray, no seat kit available for service

1шт.

H436146

SEAT

ASSEMBLY - operator's, brown, brown, includes: Refs. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - seat

1шт.

N13696

SET

KIT - seat, brown, no longer available, order H436146 complete seat assembly, includes: Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

3

NSS

NOT SOLD SEPARAT

CLIP - seat trim

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - seat

1шт.

5

H673473

LARGE PLATE

BRACKET - seat mounting

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4 NC x 3-3/4 inch

1шт.

9

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

10

H386334

FLOOR MAT

STRIP - anti-skid, backhoe access steps

2шт.

11

116164A1

GUARD

- foot, left-hand

1шт.

12

116165A1

GUARD

- foot, right-hand

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

15

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

PIN, CLEVIS, 3/4 x 3-1/2 inch, Special, Seat post

1шт.

16

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair, 5/16 x 2-25/32 inch

1шт.
