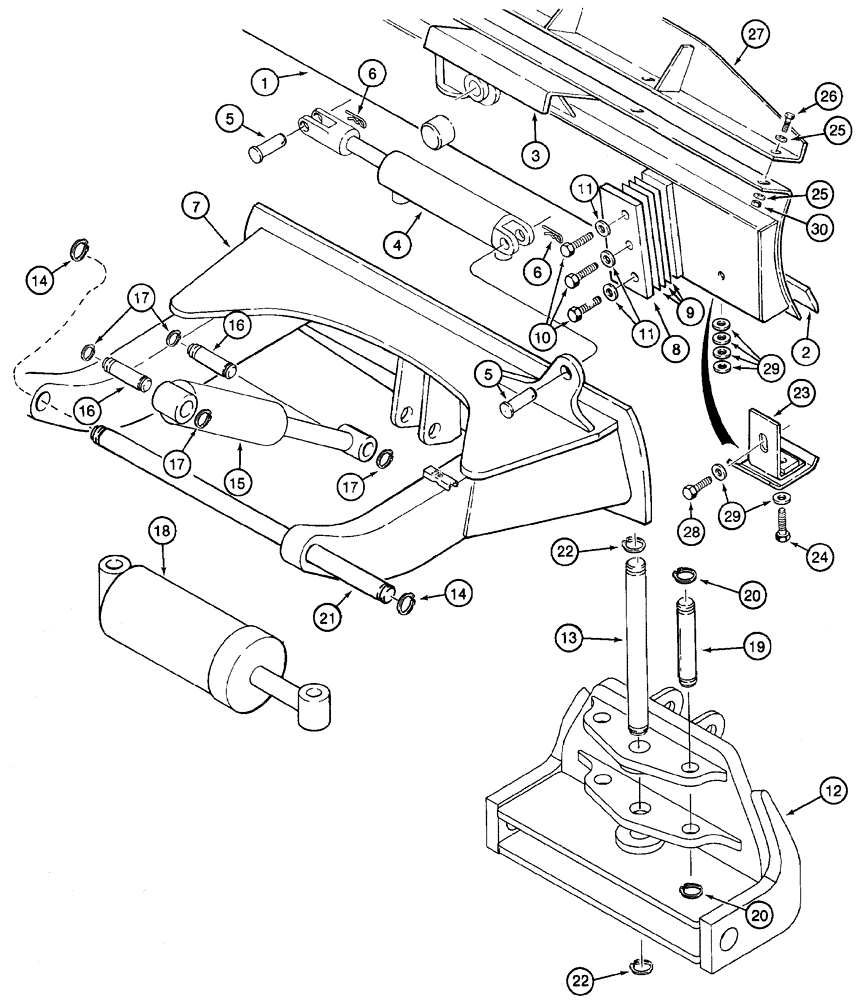

Запчасти Case 460 (9-16) - BACKFILL BLADE AND MOUNTING, SIX-WAY BACKFILL BLADE (09) - CHASSIS/ATTACHMENTS

1

128468A1

WIPER

BLADE ASSEMBLY - 6-way backfill, includes: Refs. 2 and 3

1шт.

2

126027A1

EDGE

- cutting, 6-way backfill blade

1шт.

3

H436738

GUARD

- tilt cylinder

1шт.

4

H673747

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 89 mm (3-1/2 inch) stroke, backfill blade tilt, parts list figure 8-42

1шт.

5

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

6

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN - cotter, hair, 1/2 x 3-1/4 inch

2шт.

7

103984A1

ARM

- mounting, backfill blade

1шт.

8

H438273

RETAINER

PLATE - retainer, Serial Range: blade-arm

2шт.

9

H438278

SHIM,1.5mm Thk

Retainer plate 1.5mm Thk

1шт.

10

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

6шт.

11

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

6шт.

12

103974A1

PIVOT

BRACKET - pivot, backfill arm

1шт.

13

103991A1

PIN

- mounting, 234 mm, backfill arm pivot bracket

1шт.

14

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pivot pin #125, Ext

2шт.

15

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list figure 8-38

1шт.

16

H437684

PIN

- mounting, lift cylinder to arm and pivot bracket

2шт.

17

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Lift cylinder pin #98, Ext

4шт.

18

103989A1

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 203 mm (8 inch) stroke, backfill blade angle, parts list figure 8-40

1шт.

19

103990A1

PIN

- mounting, angle cylinder to pivot bracket

4шт.

20

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Angle cylinder mounting pin #98, Ext

4шт.

21

103993A1

PIN

- mounting, 591 mm, backfill arm mounting pivot

1шт.

22

D25279

SNAP RING,M35, Int

RING - snap, pivot pin

2шт.

23

128471A1

SHOE (ASSY)

SHOE - skid, backfill blade

2шт.

24

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

24шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

27

128305A1

EXTENSION

- backfill blade

1шт.

28

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

30

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.
