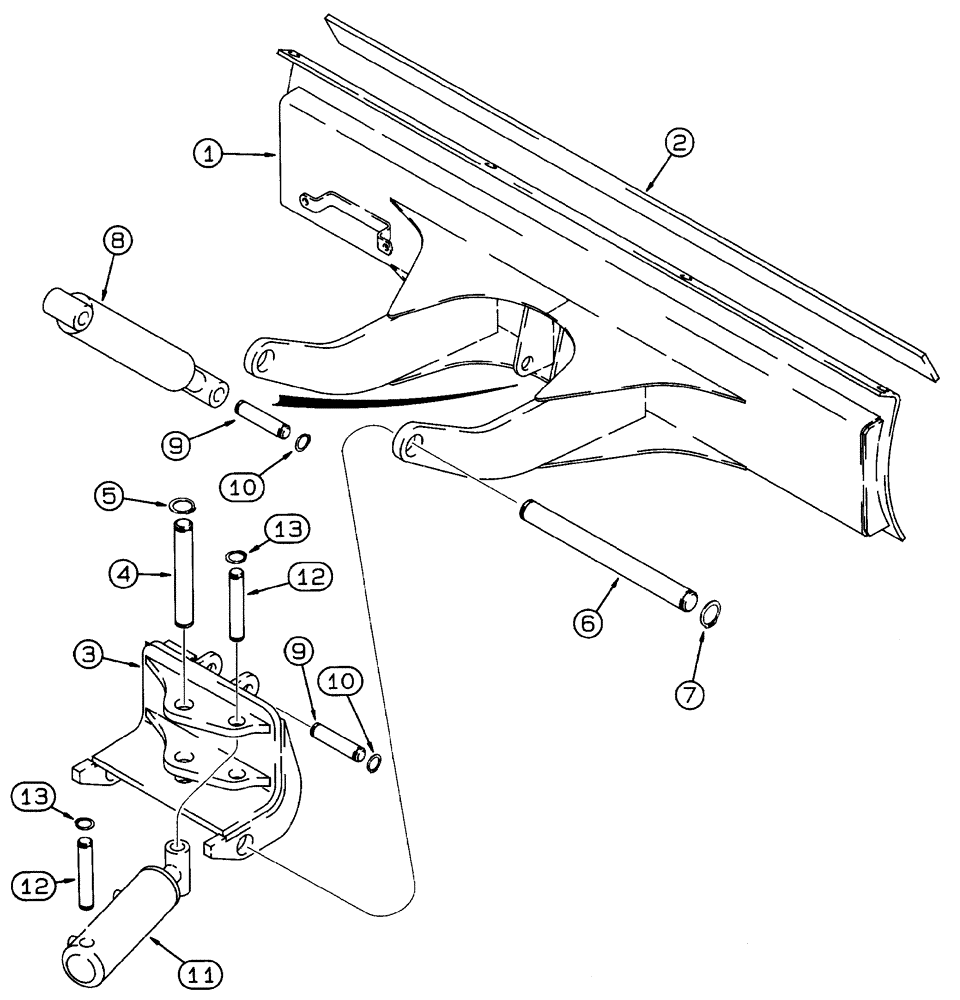

Запчасти Case 460 (9-14) - BACKFILL BLADE AND MOUNTING, FOUR-WAY BACKFILL BLADE (09) - CHASSIS/ATTACHMENTS

1

117345A1

WIPER

BLADE - backfill, 4-way, includes: Ref. 2

1шт.

2

126027A1

EDGE

- cutting, 4-way backfill blade

1шт.

3

117338A1

PIVOT

BRACKET - pivot, 4-way backfill blade

1шт.

4

126161A1

PIVOT PIN

PIN - pivot, bracket

1шт.

5

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pivot bracket pin #125, Ext

2шт.

6

117347A1

PIN

- 4-way backfill blade to pivot bracket

1шт.

7

D25279

SNAP RING,M35, Int

RING - snap, blade to pivot bracket pin

2шт.

8

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list figure 8-38

1шт.

9

H437684

PIN

- mounting, lift cylinder to blade and pivot bracket

2шт.

10

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Blade and pivot bracket mounting pin #98, Ext

4шт.

11

103989A1

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 203 mm (8 inch) stroke, backfill blade angle, parts list figure 8-40

1шт.

12

103990A1

PIN

- mounting, angle cylinder

2шт.

13

100-1698

SNAP RING,#98, Ext

Ring, Snap, , Angle cylinder pin #98, Ext

4шт.
