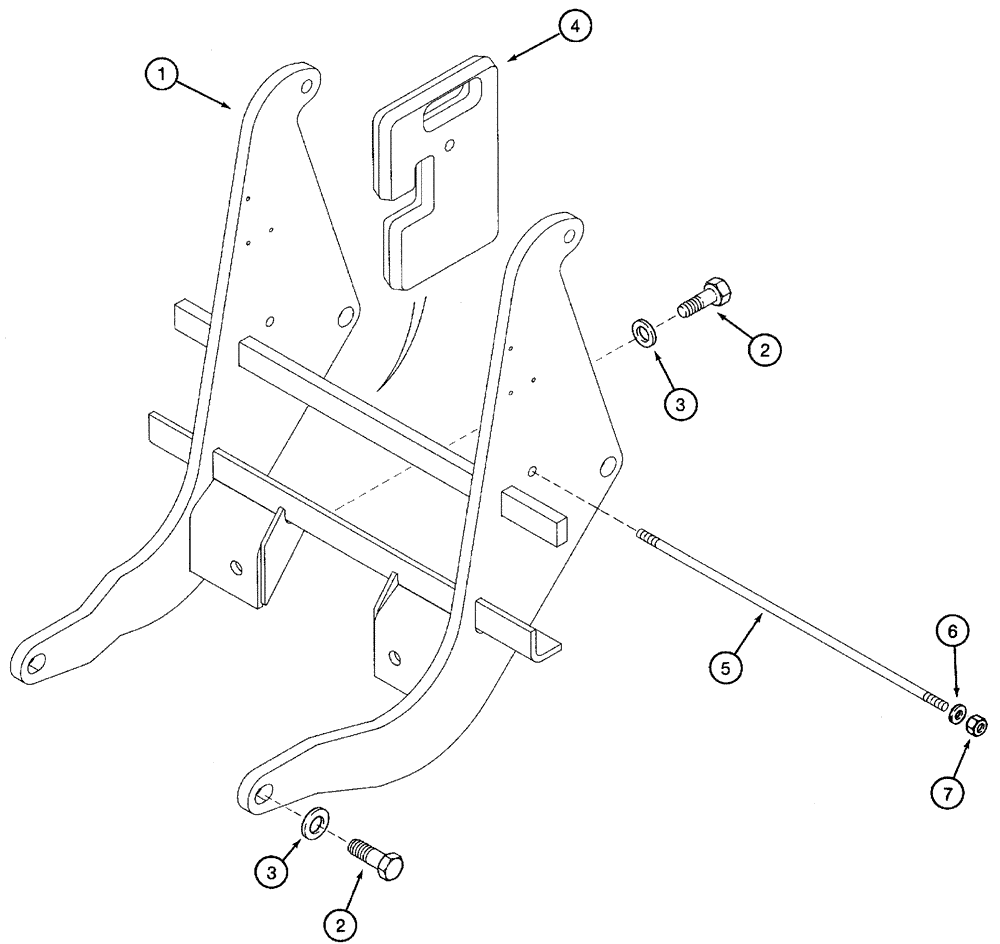

Запчасти Case 460 (9-10) - FRONT COUNTERWEIGHTS (09) - CHASSIS/ATTACHMENTS

1

113154A1

CHASSIS

FRAME - mounting

1шт.

113154A1 frame is also used to mount reel carrier attachment on models so equipped. See figure 9-99A for reel carrier arm and mounting.

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

- hex, 1-1/4 NC x 3-1/2 inch

4шт.

3

D43536

WASHER

- flat, special, 1-1/4 inch, hardened

4шт.

4

109364A1

WEIGHT

60.3 lbs (27.4 kg), front

7шт.

5

H379339

STUD

ROD - counterweight retaining

1шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.
