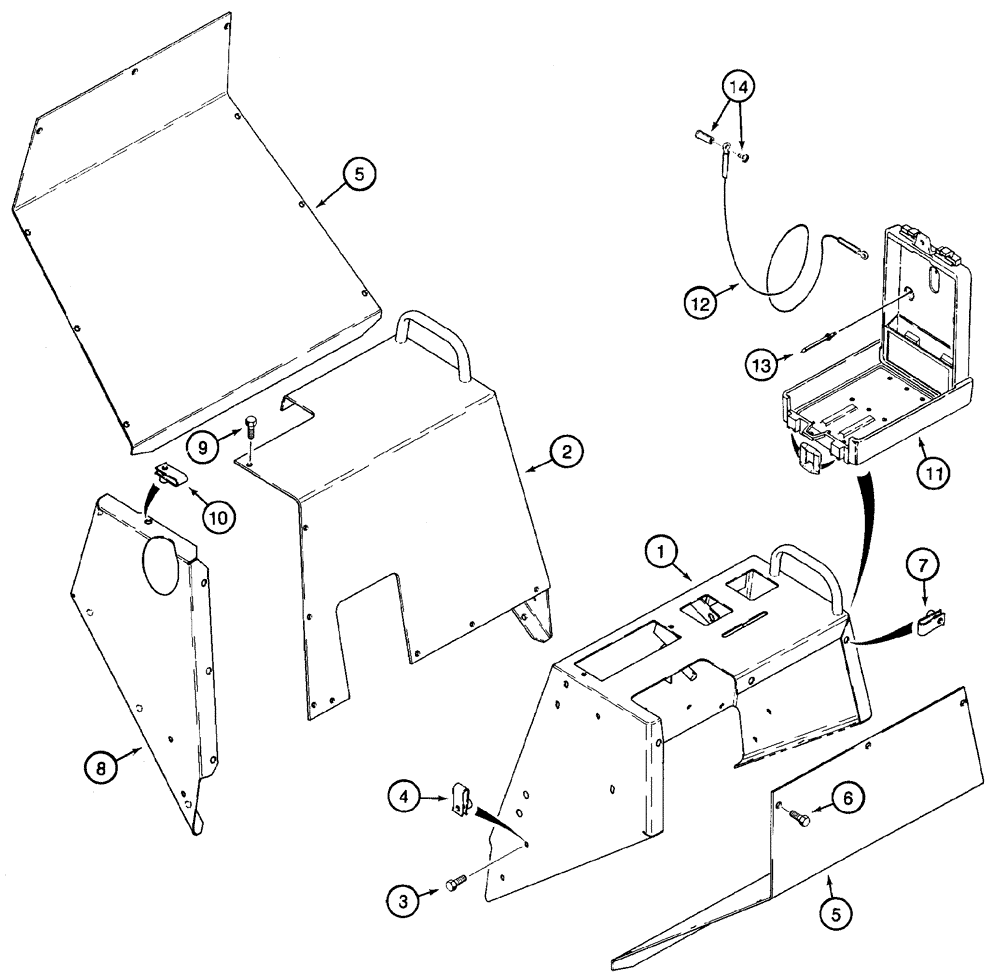

Запчасти Case 460 (9-06) - OPERATORS COMPARTMENT, CONSOLES AND COVERS (09) - CHASSIS/ATTACHMENTS

1

114365A1

CONSOLE

- operators compartment, right-hand

1шт.

2

H673962

CONSOLE

- operators compartment, left-hand

1шт.

3

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

4

H435223

NUT

- special, 5/16 inch NC

14шт.

5

H437042

COVER

- console, right-hand and left-hand

2шт.

6

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

18шт.

7

H346650

NUT

- U-type, 5/16 inch NC

18шт.

8

H437813

LARGE PLATE

COVER - end, left-hand console

1шт.

9

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

H346650

NUT

- U-type, 5/16 inch NC

4шт.

11

R46464

CASE

BOX - operators manual

1шт.

12

D126821

CABLE

CORD - manual retaining

1шт.

13

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 9/16 inch

3шт.

14

R46463

SCREW,0.18" x 0.75"

POST - manual retaining, 3/16 x 3/4 inch

1шт.
