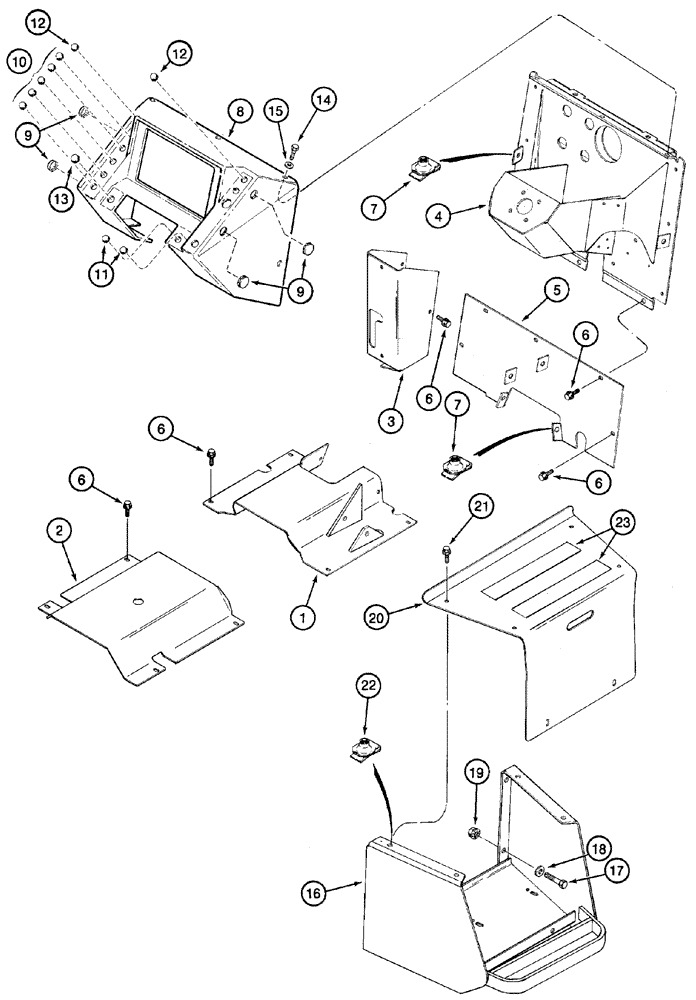

Запчасти Case 460 (9-04) - OPERATORS COMPARTMENT, FLOORPLATES, STEP, STEERING TOWER, AND INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

107159A1

LARGE PLATE

PLATE - floor, front

1шт.

2

123975A1

LARGE PLATE

PLATE - floor, rear

1шт.

3

107163A1

COVER

- brake mounting

1шт.

4

111510A1

CASING

TOWER - steering column

1шт.

5

107164A1

WALL

FIREWALL - engine

1шт.

6

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

24шт.

7

H346650

NUT

- U-type, 5/16 inch NC

18шт.

8

D123199

PANEL

- instrument, brown

1шт.

8

179194A1

PANEL, INSTRUMENTS

PANEL - instrument, gray

1шт.

9

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch

4шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

5шт.

11

353-403

PLUG,Dome, .437" hole, Nylon

2шт.

12

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

13

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

15

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

5шт.

16

116358A1

BOX

- battery and oil filter, includes step

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

20

116380A1

COVER

- battery and oil filter box

1шт.

21

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

22

H346650

NUT

- U-type, 5/16 inch NC

6шт.

23

110528A1

ADHESIVE STRIP

STRIP - anti-skid, 318 mm (12-1/2 inch) long, cut from H431205 bulk strip

2шт.

H431205

ADHESIVE STRIP

STRIP - anti-skid, bulk, 635 mm (25 inch) long

1шт.
