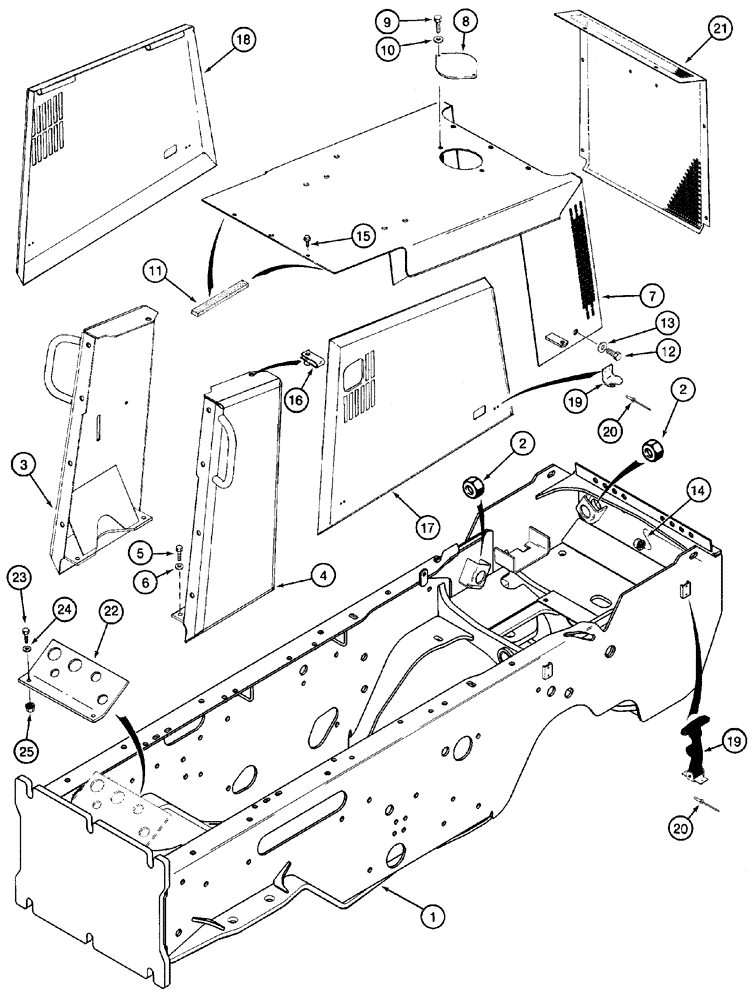

Запчасти Case 460 (9-02) - CHASSIS, HOOD, AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

115702A1

CHASSIS

- 460 Trencher

1шт.

2

232-41120

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.

3

138187A1

PANEL

COWL - upright, left-hand

1шт.

4

111508A2

COWL

- upright, right-hand

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

7

115706A1

HOOD

- engine

1шт.

8

189684A1

COVER

- radiator cap access

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

10

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch, hardened

2шт.

11

A173165

SEALING STRIP

- adhesive-backed, 485 mm (19 inch) long, cut in half and install on underside of hood

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

15

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

H346650

NUT

- U-type, 5/16 inch NC

4шт.

17

116401A1

SHIELD

PANEL - side, engine, right-hand

1шт.

18

116403A1

SHIELD

PANEL - side, engine, left-hand

1шт.

19

H672204

HOOD

LATCH - hood

4шт.

20

151-558

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 1/2 inch

16шт.

21

106995A1

GRILLE

- radiator guard

1шт.

22

105580A1

LARGE PLATE

PLATE - bulkhead, mounting, hydraulic fittings

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.
