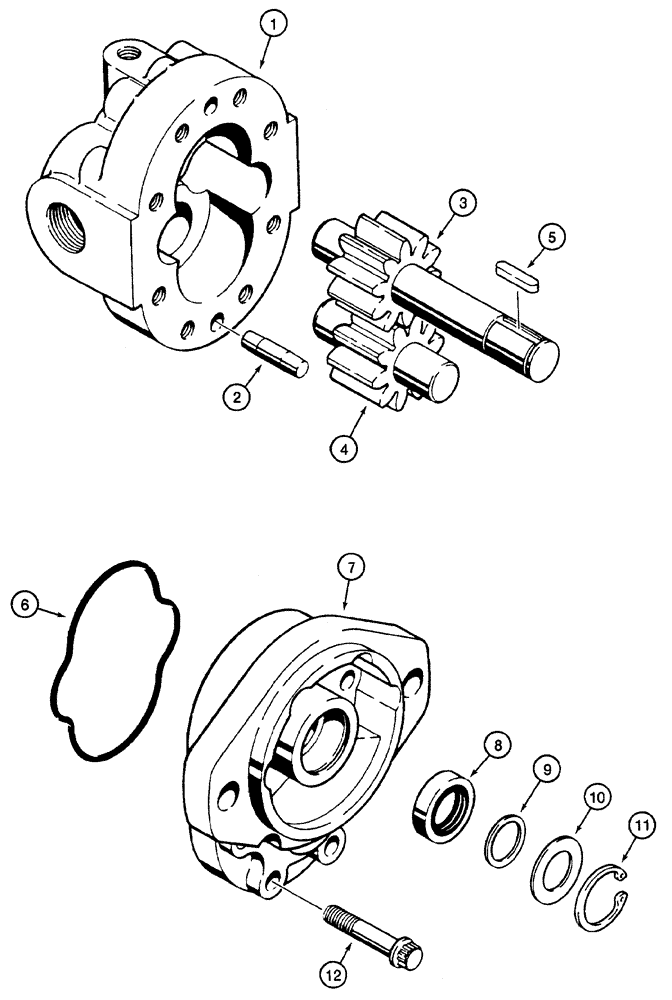

Запчасти Case 460 (8-108) - HYDRA-BORER HYDRAULIC MOTOR ASSEMBLY, H654814 (08) - HYDRAULICS

H654814

MOTOR

ASSEMBLY - hydraulic, Hydra-Borer, new, Hydra-Borer, includes: Refs. 1 - 12

1шт.

HR654814

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydraulic, Hydra-Borer, remanufactured, component parts shown in this fig. do not apply to the remanufactured assembly, includes: Refs. 1 - 12

1шт.

HC654814

CORE-MONITOR

RETURN NUMBER - use this part number to return the motor core for credit when using a remanufactured assembly, includes: Refs. 1 - 12

1шт.

1

H660316

HOUSING

- motor

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, housing

2шт.

3

H660332

GEAR

- drive, must also replace H660324 driven gear (Ref. 4) as a matched set

1шт.

4

H660324

GEAR

- driven, must also replace H660332 drive gear (Ref. 3) as a matched set

1шт.

5

H413575

KEY

- drive shaft

1шт.

6

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Housing seal

1шт.

7

N13533

PLATE

COVER - motor

1шт.

8

H263608

SEAL

- shaft, output

1шт.

9

H418004

WASHER

- backup

1шт.

10

H94490

WASHER

- special

1шт.

11

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Seal 1.125", Int, #112

1шт.

12

380-2524

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"

BOLT - 12 point flange, chemical locking, 5/16 NC x 1-1/2 inch

8шт.
