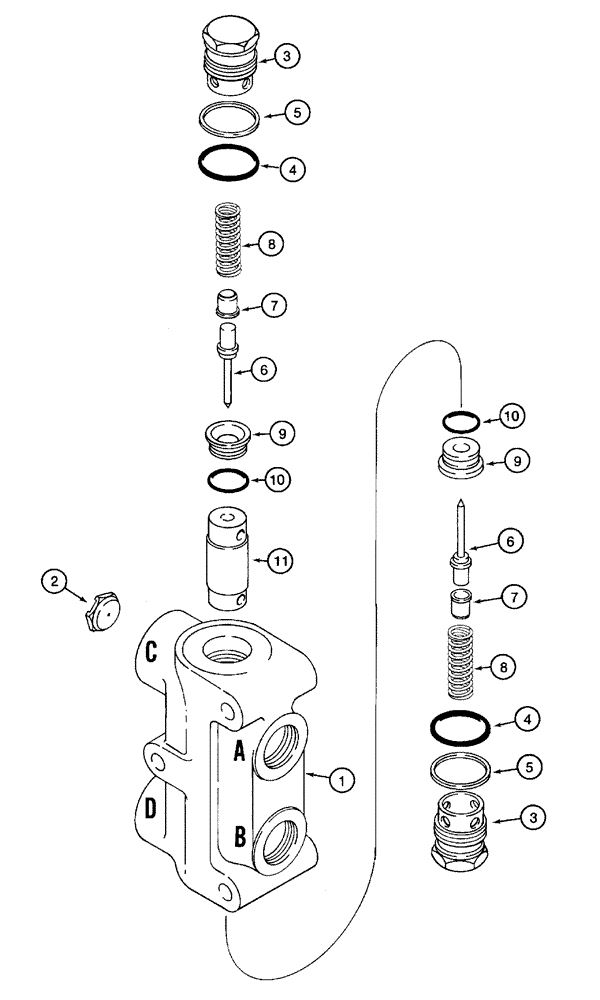

Запчасти Case 460 (8-102) - LOCKOUT VALVE ASSEMBLY, H672547, TRENCHER BOOM LIFT AND PLOW LIFT (08) - HYDRAULICS

H672547

VALVE

ASSEMBLY - lockout, trencher boom lift and plow lift, includes: Refs. 1 - 11

1-2шт.

1

H267948

VALVE BODY

BODY - lockout valve

1шт.

2

H270603

ORIFICE

PLATE - orifice, 0.055 inch, used with H672821 planetary drive trencher boom lift cylinder

1шт.

2

H746842

ORIFICE

PLATE - orifice, used with 114705A1 direct drive trencher boom lift cylinder

1шт.

A43525

PLUG

ASSEMBLY - lockout valve, includes: Refs. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - lockout valve

1шт.

4

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

5

S302062

BACK-UP RING

RING - backup, plug O-ring

1шт.

6

F88777

PLUNGER

POPPET - lockout valve

2шт.

7

N13488

EYE

SEAT - spring

2шт.

8

85069C1

VALVE SPRING

SPRING - poppet

2шт.

N13369

SEAT ASSY.

SEAT ASSEMBLY - poppet, includes: Refs. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seat -016, 90 Duro, .614" ID x .070" Thk

1шт.

11

N13489

PLUNGER

PISTON - lockout valve

1шт.
