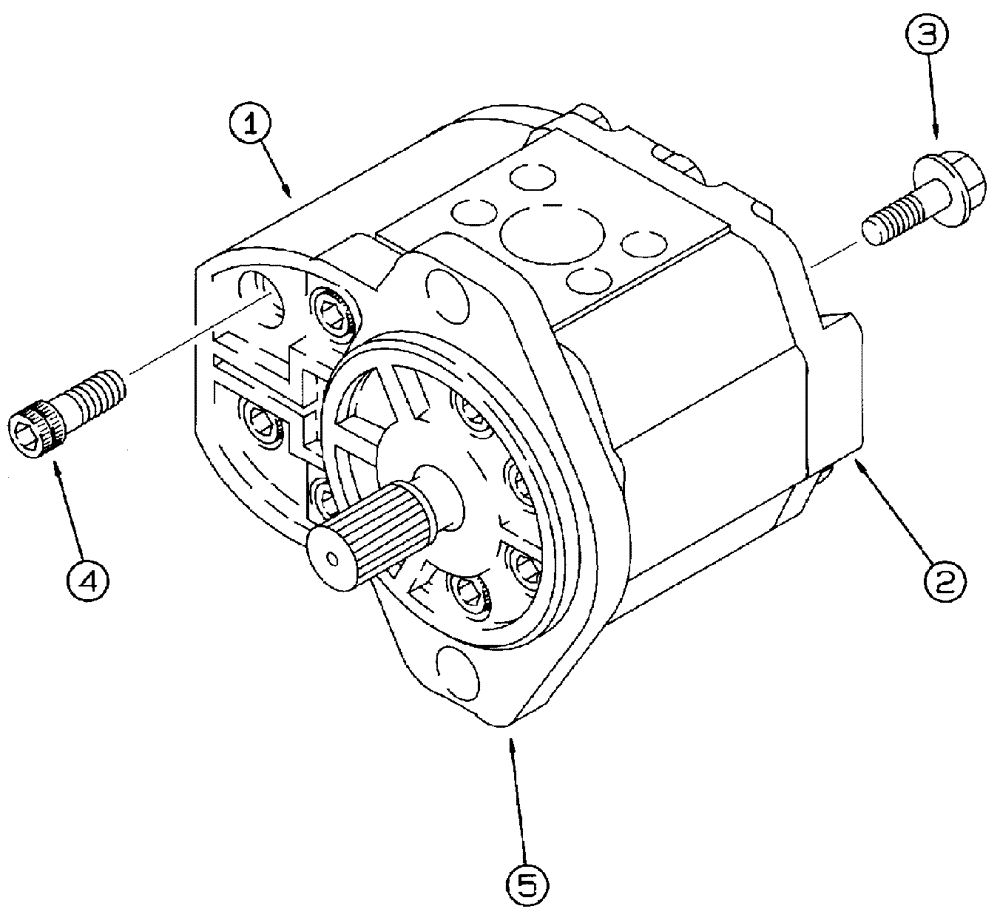

Запчасти Case 460 (8-100) - PLOW MOTOR ASSEMBLY, 133530A1, P75 PLOW (08) - HYDRAULICS

133530A1

MOTOR

ASSEMBLY - plow, see figure 9-98 for motor mounting, includes: Refs. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - plow motor

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - plow motor

1шт.

3

141149A1

SCREW

BOLT - hex, special, cover retaining

8шт.

4

141150A1

FLANGE BOLT

SCREW - hex socket, special, mounting flange retaining

8шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - mounting, plow motor

1шт.

141151A1

SEAL KIT

KIT - seal replacement, includes three (3) O-rings, one (1) retaining ring, one (1) sealing ring, and one (1) 139070A1 shaft seal

1шт.
