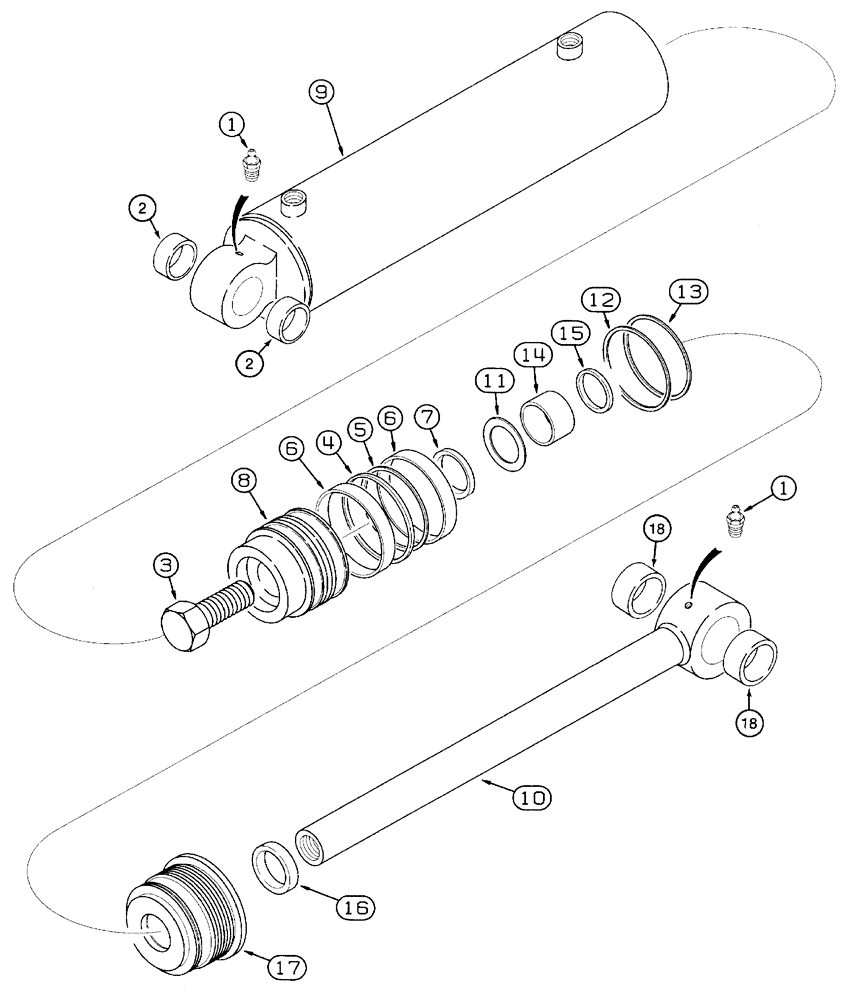

Запчасти Case 460 (8-096) - PLOW LIFT CYLINDER ASSEMBLY, 120351A1, P75 PLOW (08) - HYDRAULICS

120351A1

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 290 mm (11-13/32 inch) stroke, plow lift, includes: Refs. 1 - 18

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

2

H436772

BUSHING

- cylinder rod

2шт.

3

137679A1

BOLT

- hex, special

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

8

137682A1

PISTON

- cylinder

1шт.

9

137684A1

TUBE

- cylinder

1шт.

10

137685A1

ROD

- piston

1шт.

11

102-21175

SNAP RING,#175, 1.876", Int, Spiral

RING - internal spiral retaining, No. 175

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear, gland

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - U-cup

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Seal Kit P/N 137688A1

1шт.

17

137686A1

GLAND

- cylinder

1шт.

18

137687A1

BUSHING

- rod eye

2шт.

137688A1

SEAL KIT

KIT - includes Refs. 4 - 7 and 12 - 16

1шт.
