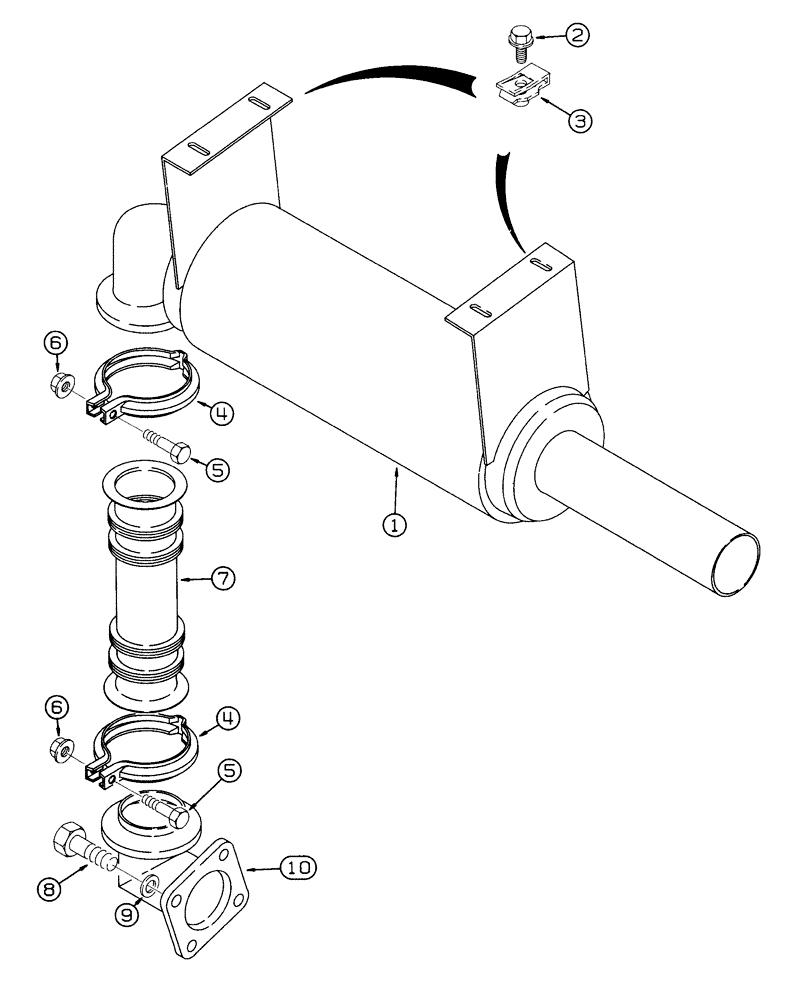

Запчасти Case 460 (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

135561A1

MUFFLER

- engine exhaust

1шт.

2

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

H346650

NUT

- U-type, 5/16 inch NC

4шт.

4

135543A1

CLAMP,71.12mm - 71.63mm

- muffler

2шт.

5

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

6

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

7

138648A1

BELLOWS

- exhaust system

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

9

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

10

138004A1

ELBOW

ADAPTER - exhaust system

1шт.
