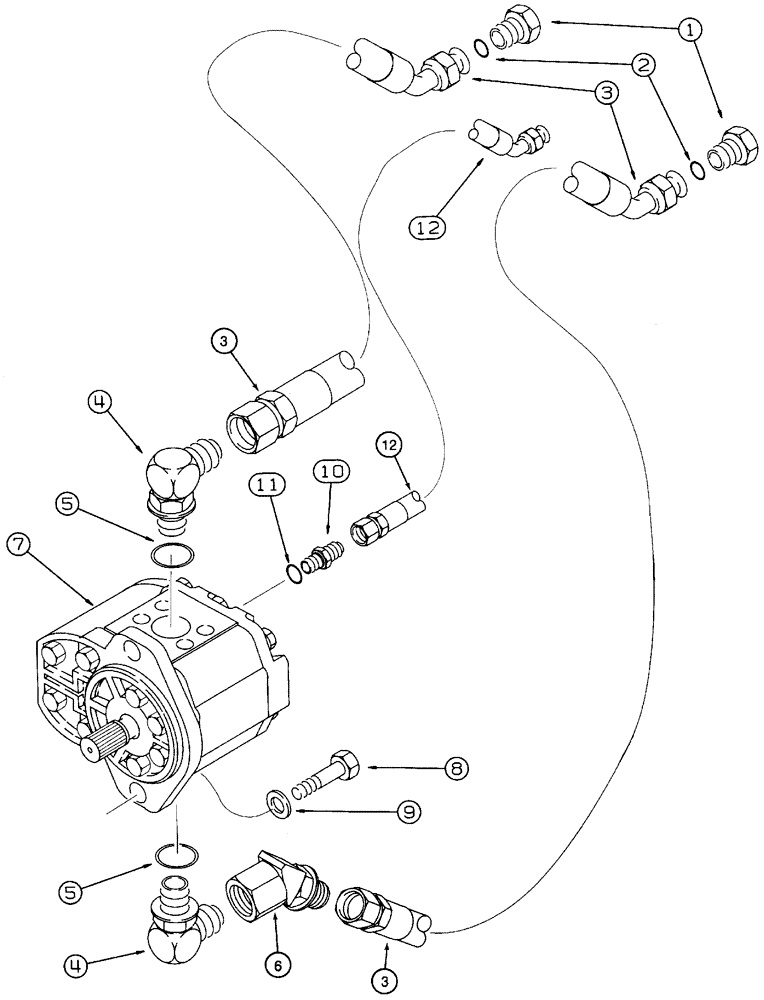

Запчасти Case 460 (8-092) - PLOW HYDRAULIC CIRCUIT, PLOW MOTOR SUPPLY AND RETURN LINES, FROM REAR BULKHEAD PLATE (08) - HYDRAULICS

1

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face, includes: Ref. 2

2шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.

3

127252A2

HOSE ASSY.

HOSE - 1175 mm (46-1/4 inch) long, with sleeve, plow motor

2шт.

4

218-5601

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-1/16-12 flare x 1-5/8-12 inch adj O-ring boss, includes: Ref. 5

2шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.

7

133530A1

MOTOR

ASSEMBLY - plow, parts list page 8-98

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

H274894

WASHER

- flat, special

2шт.

10

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 7/8-14 flare x 3/4-16 inch adj O-ring, includes: Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

198014A1

HOSE

- 1135 mm (44-11/16 inch) long, plow motor case drain

1шт.
