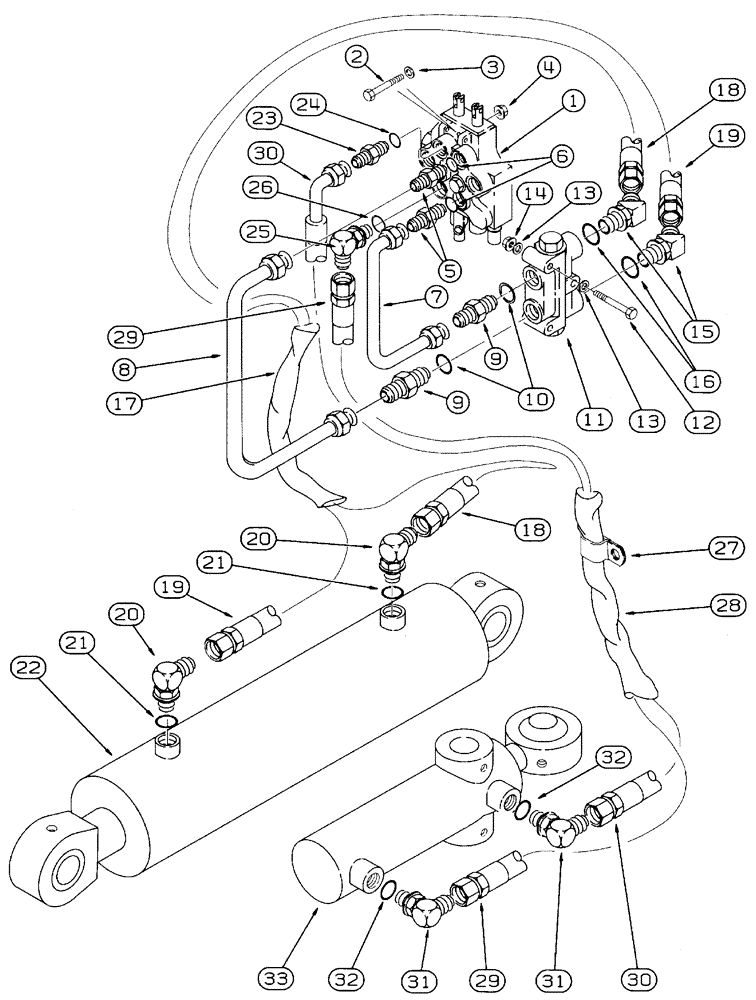

Запчасти Case 460 (8-090) - PLOW HYDRAULIC CIRCUIT, PLOW LIFT AND SWING (08) - HYDRAULICS

1

127471A1

VALVE, CHECK

VALVE ASSEMBLY - control, plow, parts list figure 8-94

1шт.

2

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

3

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

4

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

127537A1

TUBE,9.53 mm OD, 157.7, 97.7 mm Length

- plow control valve to lockout valve "A" port

1шт.

8

127538A1

TUBE,9.53 mm OD, 282.7, 117.6 mm Length

- plow control valve to lockout valve "B" port

1шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

H672547

VALVE

ASSEMBLY - lockout, plow, parts list page 8-99A

1шт.

12

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

14

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

15

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

128775A1

LOOM

SLEEVE - nylon, lift cylinder hoses

1шт.

18

H169169

HYDRAULIC HOSE,6.35 mm ID x 762.00 mm, SAE 100R1

Lockout Valve "C" Port to Plow Lift Cylinder, Rod End 6.35 mm ID x 762.00 mm, SAE 100R1

1шт.

19

128765A1

HOSE ASSY.

HOSE - 450 mm (17-3/4 inch) long, lockout valve "D" port to plow lift cylinder, closed end

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 21

2шт.

22

120351A1

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 290 mm (11-13/32 inch) stroke, plow lift, parts list figure 8-96, see figure 9-96 for mounting pins

1шт.

23

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 26

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

- P-type, 5/8 inch diameter, hose

1шт.

28

H434724

LOOM

SLEEVE - nylon, 1000 mm (39-3/8 inch) long, swing cylinder hoses

1шт.

29

H169169

HYDRAULIC HOSE,6.35 mm ID x 762.00 mm, SAE 100R1

Plow Control Valve to Plow Swing Cylinder, Closed End 6.35 mm ID x 762.00 mm, SAE 100R1

1шт.

30

128764A1

HOSE ASSY.

HOSE - 700 mm (27-1/2 inch) long, plow control valve to plow swing cylinder, rod end

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 32

2шт.

33

135825A1

CYLINDER,Double Acting, 25.4mm Rod, 142.7mm Stroke

ASSEMBLY - 51 (2) ID x 143 mm (5-5/8 inch) stroke, plow swing, parts list figure 8-98, see figure 9-96 for mounting pins

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
