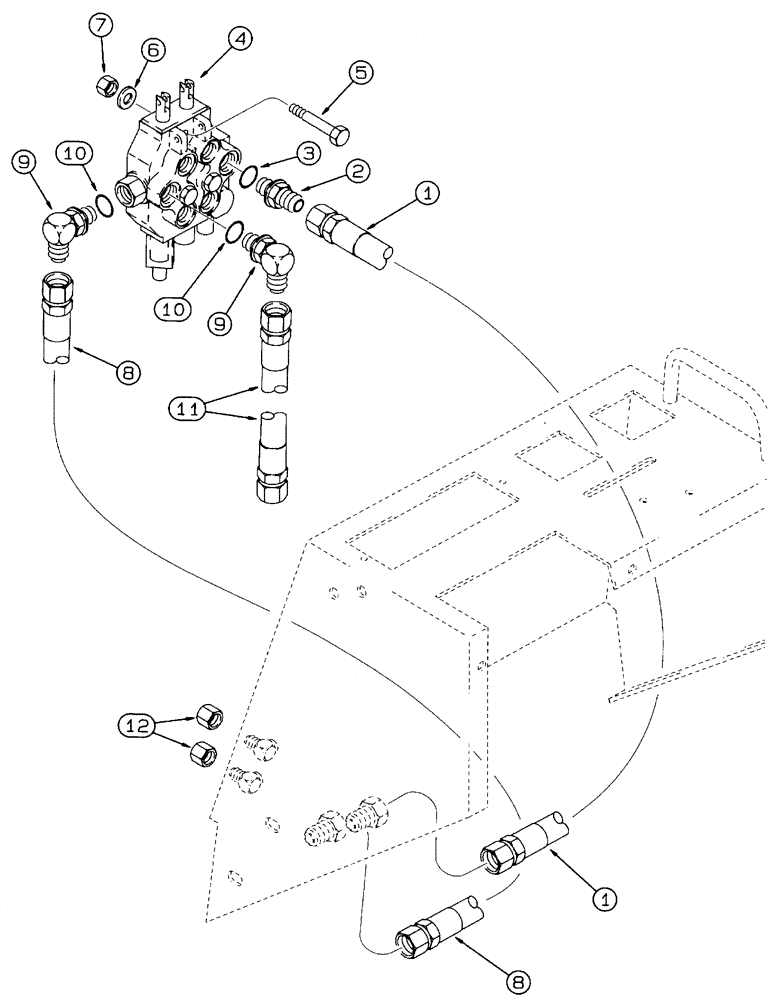

Запчасти Case 460 (8-088) - PLOW HYDRAULIC CIRCUIT, PLOW CONTROL VALVE SUPPLY AND RETURN LINES, FROM REAR RIGHT-HAND CONSOLE (08) - HYDRAULICS

1

H438087

HOSE ASSY.

HOSE - 1270 mm (50 inch) long, rear right-hand console to plow control valve, includes: Ref. 3

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, O-ring boss

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

127471A1

VALVE, CHECK

VALVE ASSEMBLY - control, plow, parts list figure 8-94

1шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

2шт.

7

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

8

112378A1

HOSE

- 600 mm (23-5/8 inch) long, rear right-hand console to plow control valve, power beyond

1шт.

9

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, includes: Ref. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

112378A1

HOSE

- 600 mm (23-5/8 inch) long, plow control valve return to rear bulkhead plate

1шт.

12

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

2шт.
