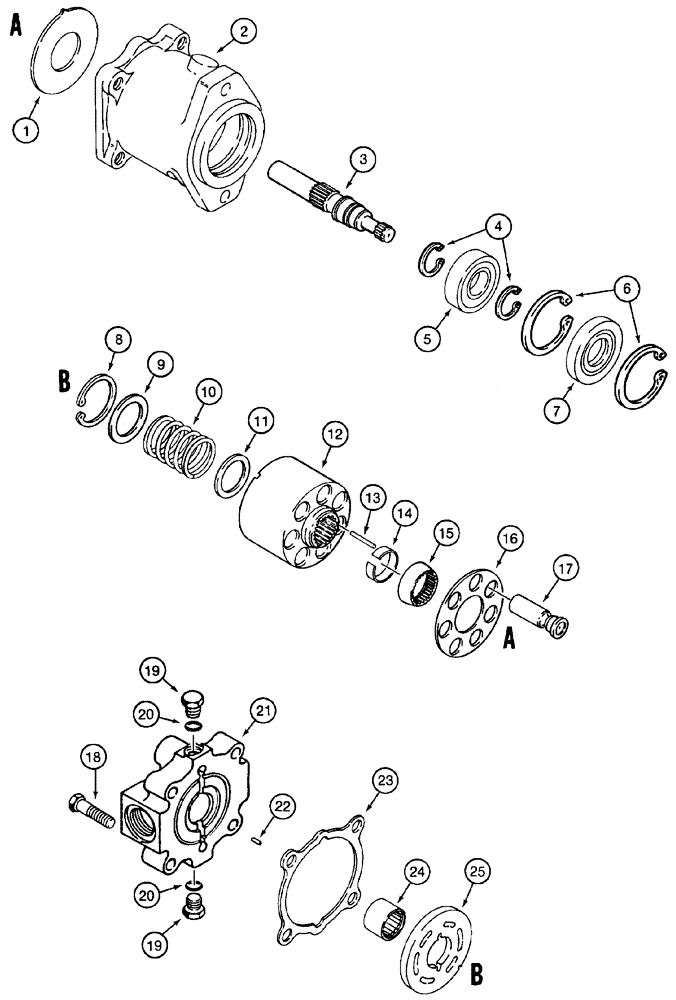

Запчасти Case 460 (8-086) - TRENCHER DRIVE MOTOR ASSEMBLY, H673186, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

H673186

HYDRAULIC MOTOR

MOTOR ASSEMBLY - trencher drive, planetary drive trencher, includes: Refs. 1 - 25

1шт.

1

N14617

WASHER

PLATE - thrust, piston

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

3

H437040

SHAFT

- motor

1шт.

4

100-11137

SNAP RING,#137, Ext

Ring, Snap, , bearing #137, Ext

2шт.

5

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, shaft

1шт.

6

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Seal 2.812", Int, #281

2шт.

7

N14103

SEAL

- shaft

1шт.

115952A1

SET

BLOCK ASSEMBLY - cylinder, includes: Refs. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, spring

1шт.

9

115950A1

WASHER

WASHER - spring, cover end

1шт.

10

115948A1

SPRING

- cylinder block

1шт.

11

115946A1

WASHER

WASHER - spring, block end

1шт.

12

115944A1

CYLINDER BLOCK

BLOCK - cylinder

1шт.

13

110873A1

PIN,2.38mm OD x 33.53mm L

- retaining, Serial Range: guide-shaft

3шт.

14

115943A1

SNAP RING

RING - retaining, guide

1шт.

15

115942A1

GUIDE

- retainer

1шт.

16

NSS

NOT SOLD SEPARAT

RETAINER - piston

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

7шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

19

214389

PLUG,3/4" - 16 ORB

Includes Ref. 20 Hex Hd, 3/4"-16 ORB

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - motor

1шт.

22

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

23

N13198

GASKET

- cover

1шт.

24

1277297C1

NEEDLE BEARING

- needle, shaft

1шт.

25

N13197

PLATE

- wear

1шт.
