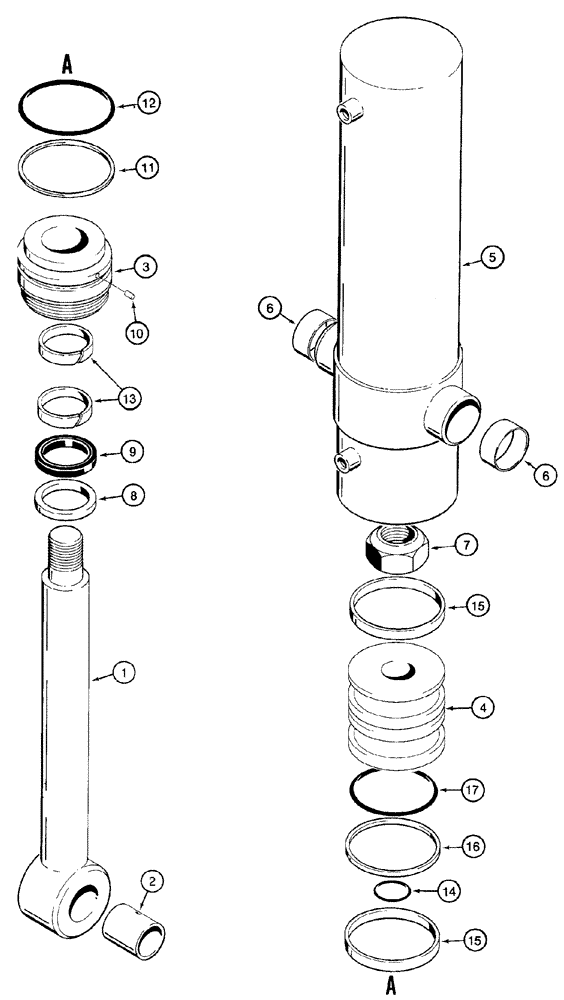

Запчасти Case 460 (8-083A) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY, 221700A1, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

221700A1

CYLINDER,Double Acting, 44.45mm Rod, 419.1mm Stroke

89 (3-1/2) ID x 165 mm (6-1/2 inch) stroke, trencher boom lift, includes: Refs. 1 - 17

1шт.

235932A1

SHAFT

ROD ASSEMBLY - piston, includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

- piston rod

1шт.

3

120787A1

HEAD

GLAND - piston

1шт.

4

235930A1

PISTON

- cylinder

1шт.

5

235931A1

CASE

TUBE - cylinder, includes: Ref. 6

1шт.

6

105814A1

BUSHING

- cylinder tube

2шт.

7

232-24020

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 235933A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

Part of Seal Kit P/N 235933A1

1шт.

10

NSS

NOT SOLD SEPARAT

LOCK - gland, nylon

1шт.

Part of Seal Kit P/N 235933A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 235933A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 235933A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, gland

2шт.

Part of Seal Kit P/N 235933A1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Seal Kit P/N 235933A1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 235933A1

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Seal Kit P/N 235933A1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Seal Kit P/N 235933A1

1шт.

235933A1

SEAL KIT

KIT - includes Refs. 8 - 17

1шт.
