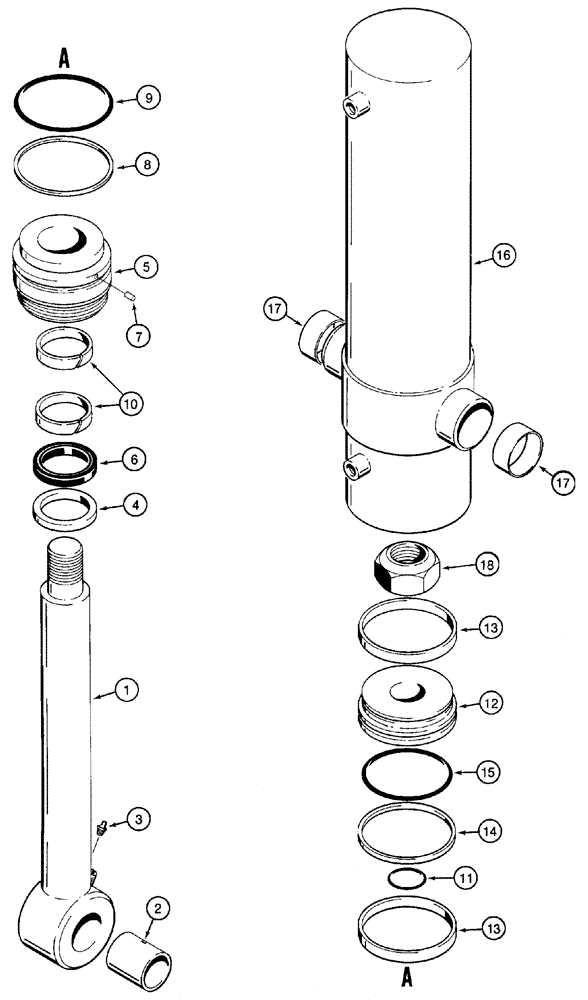

Запчасти Case 460 (8-082) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY, H672821, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

H672821

CYLINDER

ASSY - 89 (3-1/2) ID x 165 mm (6-1/2 inch) stroke, trencher boom lift, No longer available, when replacing complete cylinder order 221700A1 (Fig. 8-83A), (1) 221253A1 lower mounting pin, 7 (1) 219-1 grease fitting (Fig. 9-40), includes: Ref 1-18

1шт.

120786A1

SHAFT

ROD ASSEMBLY - piston, includes: Refs. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

2

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

- piston rod

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit P/N 120788A1

1шт.

5

120787A1

HEAD

GLAND - piston

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, gland

1шт.

Part of Seal Kit P/N 120788A1

1шт.

7

NSS

NOT SOLD SEPARAT

LOCK - gland, nylon

1шт.

Part of Seal Kit P/N 120788A1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 120788A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 120788A1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - wear, gland

2шт.

Part of Seal Kit P/N 120788A1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Seal Kit P/N 120788A1

1шт.

12

120784A1

PISTON

- cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 120788A1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

Part of Seal Kit P/N 120788A1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston, outer

1шт.

Part of Seal Kit P/N 120788A1

1шт.

16

120785A1

CASE

TUBE - cylinder

1шт.

17

105814A1

BUSHING

-

2шт.

18

232-24016

NUT,1"-14, GB

NUT, LOCK, 1"-14, GB

1шт.

120788A1

SEAL KIT

KIT- includes Refs. 4, 6 - 11, and 13 - 15

1шт.
