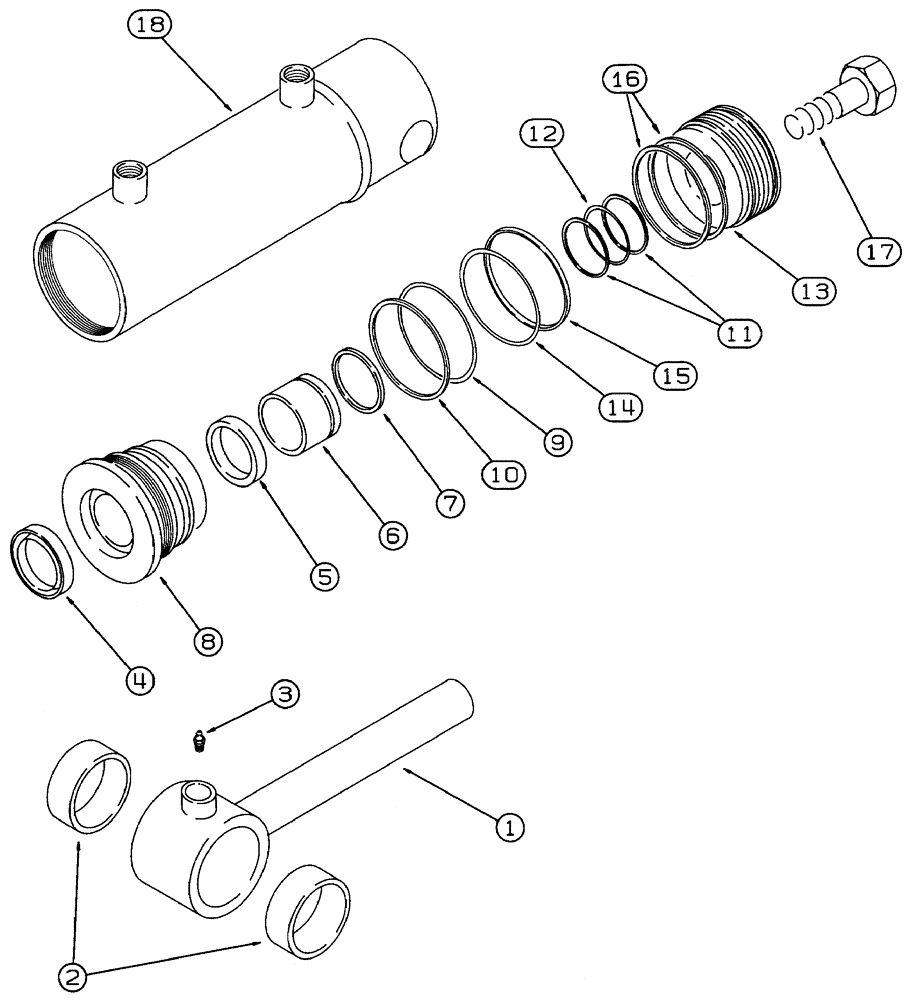

Запчасти Case 460 (8-080) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY, 114705A1, DIRECT DRIVE TRENCHER (08) - HYDRAULICS

114705A1

CYLINDER

ASSEMBLY - 76 (3) ID x 305 mm (12 inch) stroke, trencher boom lift, direct drive trencher, includes: Refs. 1 - 18

1шт.

1

133875A1

ROD

- piston

1шт.

2

D37723

NUT,51.03mm ID x 60.33mm OD x 22.23mm L

- rod

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

Part of Seal Kit P/N 133890A1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

Part of Seal Kit P/N 133890A1

1шт.

6

133877A1

RING

- wear, gland

1шт.

7

102-23175

SNAP RING,#175, Int, Spiral

RING - internal spiral retaining, No. 175

1шт.

8

133876A1

GLAND

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit P/N 133890A1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 133890A1

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Seal Kit P/N 133890A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston, inner

1шт.

Part of Seal Kit P/N 133890A1

1шт.

13

133873A1

PISTON

- cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

Part of Seal Kit P/N 133890A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit P/N 133890A1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit P/N 133890A1

1шт.

17

328-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

- hex, 3/8 NF x 2-1/2 inch, grade 8

1шт.

18

133874A1

CYLINDER ASSY.

TUBE - cylinder

1шт.

133890A1

SEAL KIT

KIT - includes Refs. 4, 5, 9 - 12, and 14 - 16

1шт.
