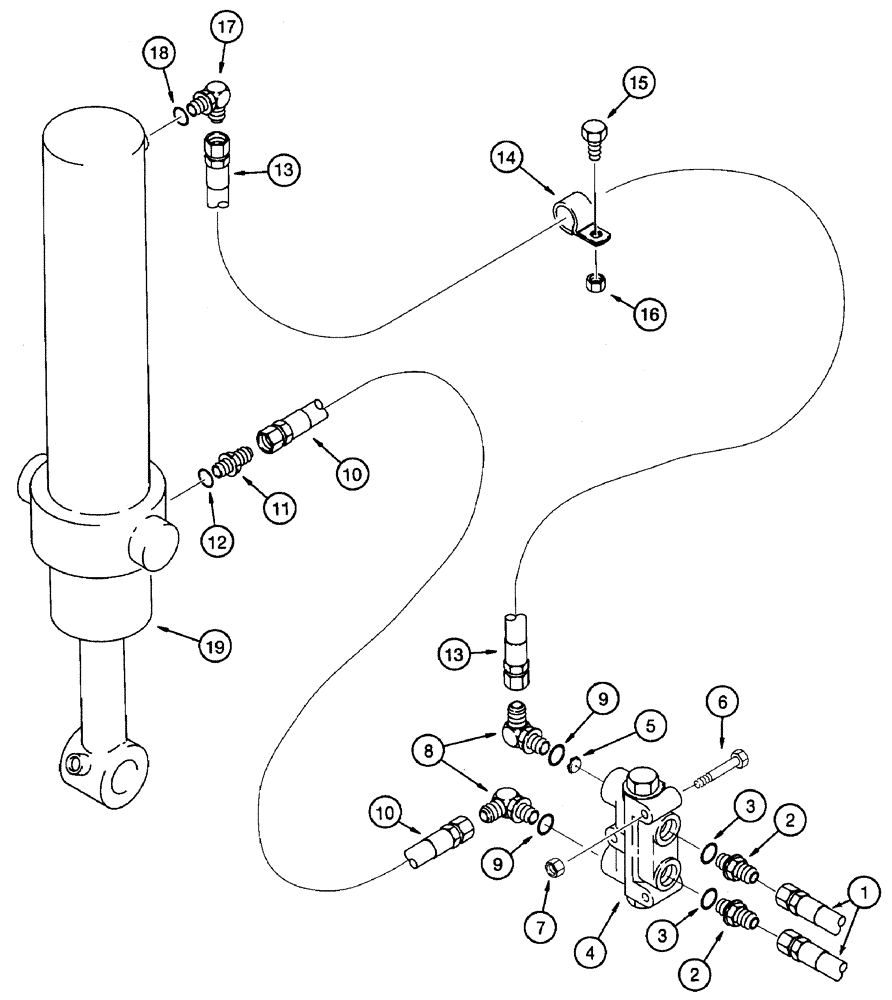

Запчасти Case 460 (8-078) - BOOM LIFT HYDRAULIC CIRCUIT, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

1

109605A1

HOSE

- 600 mm (23-5/8 inch) long, bulkhead plate to lockout valve

2шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H672547

VALVE

ASSEMBLY - lockout, trencher, parts list figure 8-99A, includes: Ref. 5

1шт.

5

H270603

ORIFICE

PLATE - orifice, 0.055 inch, included with H672547 valve assembly, see page 8-99A for complete listing of valve components

1шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

D81836

HOSE

- 406 mm (16 inch) long, lockout valve to trencher boom lift cylinder, rod end

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 12

1шт.

13

109641A1

HOSE

- 525 mm (20-3/4 inch) long, with sleeve, lockout valve to trencher boom lift cylinder, closed end

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 18

1шт.

19

H672821

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 165 mm (6-1/2 inch) stroke, trencher boom lift, parts list figure 8-82, see figure 9-40 for cylinder mounting

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
