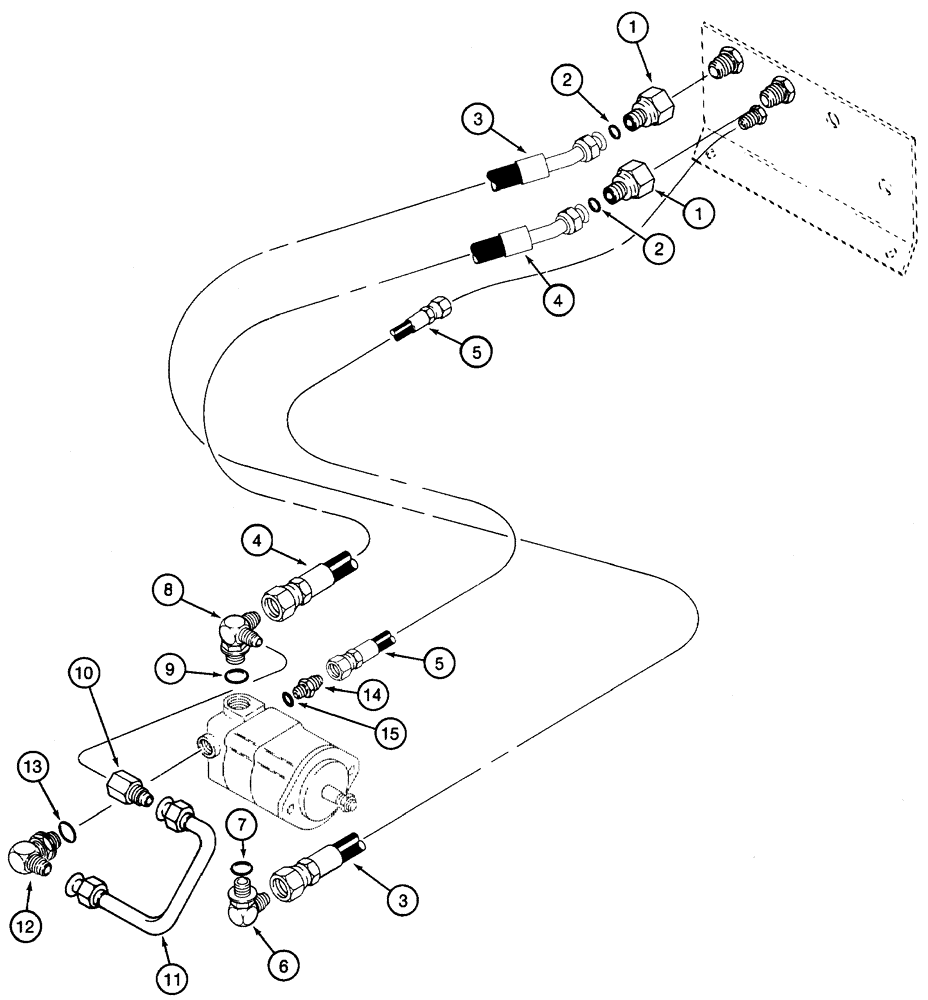

Запчасти Case 460 (8-074) - TRENCHER DRIVE HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE TO MOTOR, PLANETARY DRIVE TRENCHER (08) - HYDRAULICS

1

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

ADAPTER - reducing, 1-3/16-12 face seal x 1-7/16-12 inch female face, includes: Ref. 2

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

109607A1

HOSE

- 900 mm (35-7/16 inch) long, trencher drive motor high loop, "A" port

1шт.

4

109608A1

HOSE

- 1000 mm (39-3/8 inch) long, trencher drive motor low loop, "B" port

1шт.

5

109606A1

HOSE

- 900 mm (35-7/16 inch) long, case drain, trencher

1шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, includes: Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

TEE - special, includes: Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

10

111975A1

FITTING

ADAPTER - straight, special, 0.075 inch orifice

1шт.

11

122267A1

TUBE,12.7 mm OD, 143.9, 88.9 mm Length

- trencher drive motor flush

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

117981A1

MOTOR

ASSEMBLY - trencher drive, direct drive trencher, parts list figure 8-84, not shown

1шт.
