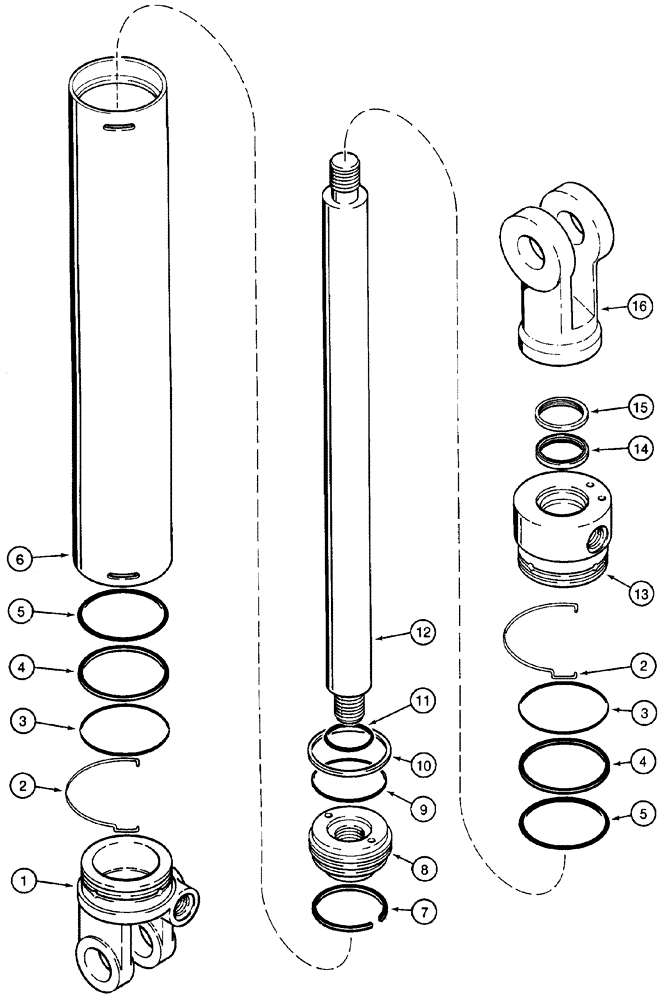

Запчасти Case 460 (8-070) - BACKHOE STABILIZER CYLINDER ASSEMBLY, 101643A1, D100 BACKHOE (08) - HYDRAULICS

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 406 mm (16 inch) stroke, D100 backhoe stabilizer, includes: Refs. 1 - 16

2шт.

1

102681A1

JACK HEAD

HEAD - cylinder, base end

1шт.

2

H436693

LOCKING RING

RING - lock

2шт.

Part of Seal Kit P/N H673837

1шт.

3

H436690

SEAL

- dust, cylinder tube

2шт.

Part of Seal Kit P/N H673837

1шт.

4

H745760

WASHER

RING - backup

2шт.

Part of Seal Kit P/N H673837

1шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

Part of Seal Kit P/N H673837

1шт.

6

102683A1

TUBE

- cylinder

1шт.

7

H436691

GASKET

RING - wear

1шт.

Part of Seal Kit P/N H673837

1шт.

8

102682A1

PISTON

- cylinder

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

Part of Seal Kit P/N H673837

1шт.

10

H120188

RING

SEAL - piston, piston O-ring

1шт.

Part of Seal Kit P/N H673837

1шт.

11

T52486

O-RING

- piston rod

1шт.

Part of Seal Kit P/N H673837

1шт.

12

H436686

PISTON ROD

ROD - piston

1шт.

13

102686A1

GLAND

- cylinder end

1шт.

14

H436694

SEAL

- U-cup

1шт.

Part of Seal Kit P/N H673837

1шт.

15

H436692

SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N H673837

1шт.

16

102685A1

JACK HEAD

CLEVIS - piston rod

1шт.

H673837

GASKET KIT

KIT - includes Refs. 2 - 5, 7, 9 - 11, 14 and 15

1шт.
