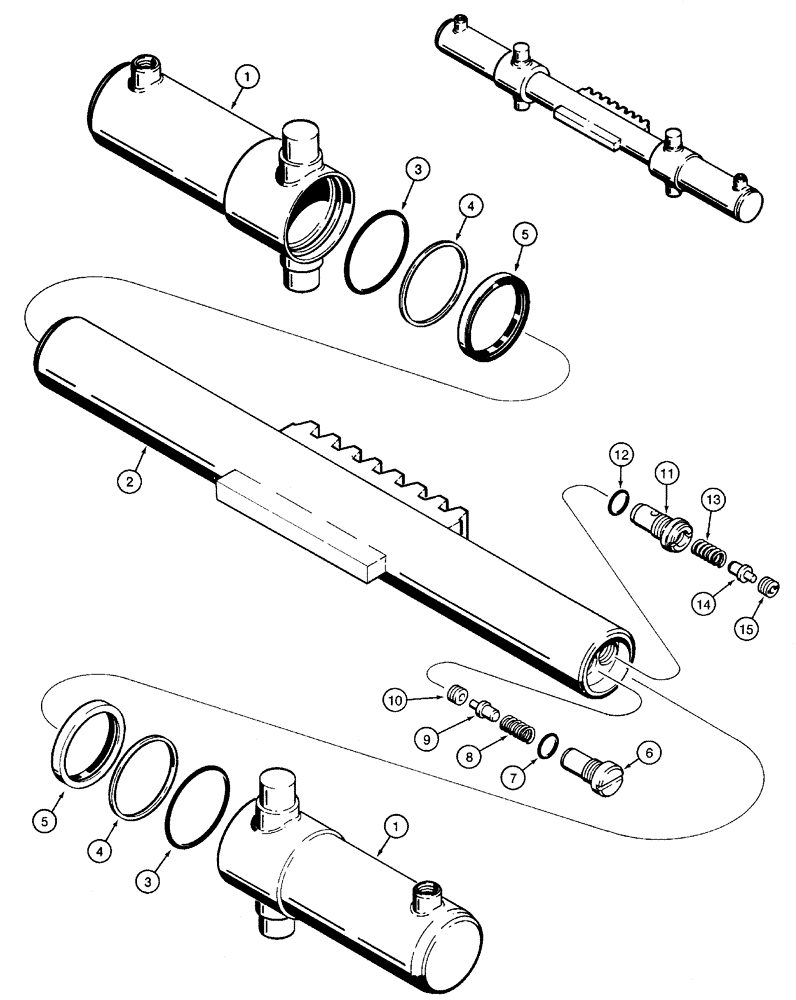

Запчасти Case 460 (8-066) - BACKHOE SWING CYLINDER ASSEMBLY, H514125, D100 BACKHOE (08) - HYDRAULICS

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 203 mm (8 inch) stroke, backhoe swing, includes: Refs. 1 - 15

1шт.

1

H392068

BARREL

TUBE - swing cylinder

2шт.

2

H53017

PISTON ROD

ROD - piston

1шт.

3

H743591

O-RING

- tube seal

2шт.

Part of Seal Kit P/N H53041

1шт.

4

H754606

WASHER

RING - backup, O-ring

2шт.

Part of Seal Kit P/N H53041

1шт.

5

H215202

SEAL ASSY.

SEAL - dust, tube to piston rod

2шт.

Part of Seal Kit P/N H53041

1шт.

H53033

LOCK VALVE

VALVE ASSEMBLY - relief, includes: Refs. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Body -116, 70 Duro, .737" ID x .103" Thk

1шт.

Part of Seal Kit P/N H53041

1шт.

8

F37883

SPRING

- relief valve

1шт.

9

H138362

SPOOL

POPPET - relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53025

LOCK VALVE

VALVE ASSEMBLY - relief, tube, includes: Refs. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Body -116, 70 Duro, .737" ID x .103" Thk

1шт.

Part of Seal Kit P/N H53041

1шт.

13

F37883

SPRING

- relief valve

1шт.

14

H138362

SPOOL

POPPET - relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H53041

SEAL ASSY.

KIT - seal, cylinder repair, icludes Refs. 3 - 5, 7 and 12

1шт.
