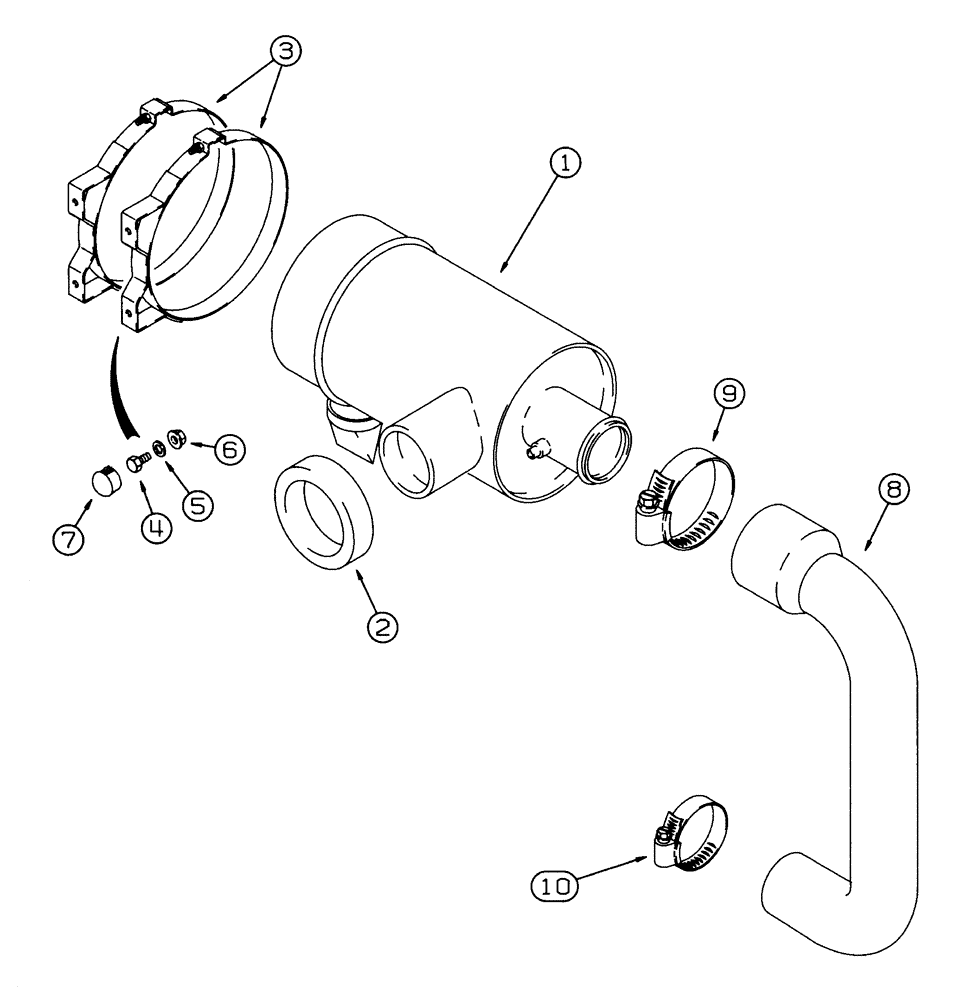

Запчасти Case 460 (2-04) - AIR CLEANER MOUNTING (02) - ENGINE

1

1347840C1

AIR CLEANER

CLEANER ASSEMBLY - air, parts list figure 2-6

1шт.

2

H438535

SEAL

- air inlet

1шт.

3

L113910

CLAMP

- air cleaner mounting, includes hardware

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

4шт.

8

117600A1

INTAKE AIR HOSE,44.00 mm ID, 63.00 mm ID x 342.00 mm

HOSE - air cleaner

1шт.

9

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

1шт.

10

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

1шт.
