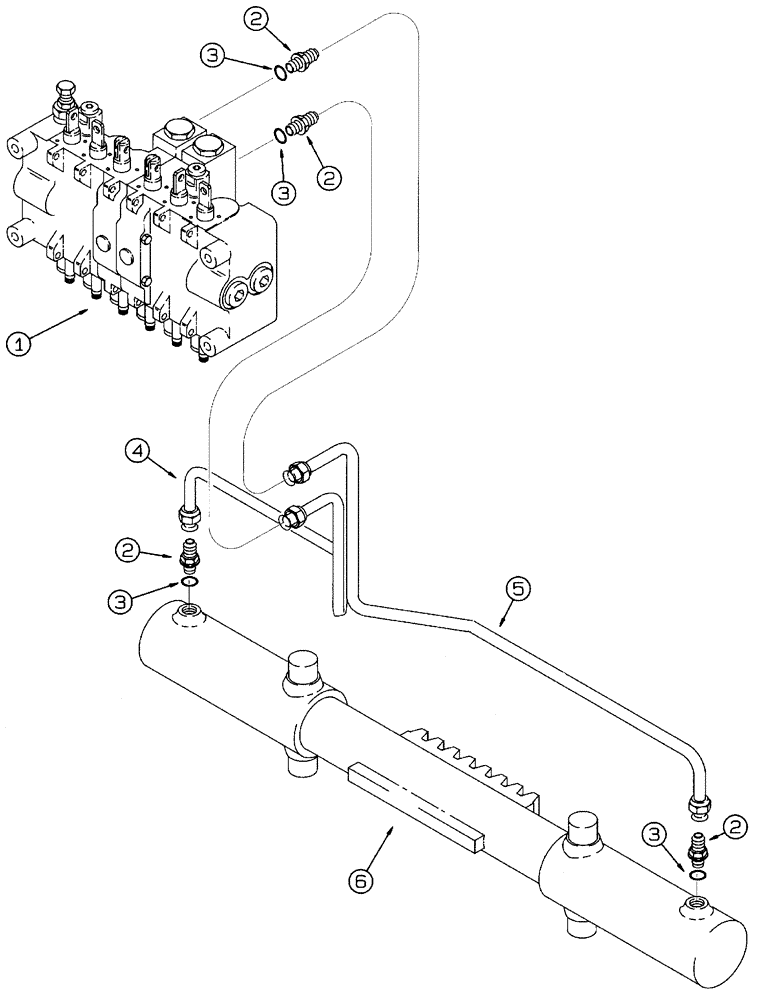

Запчасти Case 460 (8-046) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT, D100 BACKHOE (08) - HYDRAULICS

1

H674300

VALVE

ASSEMBLY - control, backhoe, parts list figures 8-56 - 8-64, see figure 9-20 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl.: Ref 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

117493A1

TUBE

- swing cylinder, left-hand side

1шт.

5

117495A1

TUBE

- swing cylinder, right-hand side

1шт.

6

H514125

CYLINDER ASSY.

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 203 mm (8 inch) stroke, swing, parts list figure 8-66

1шт.
