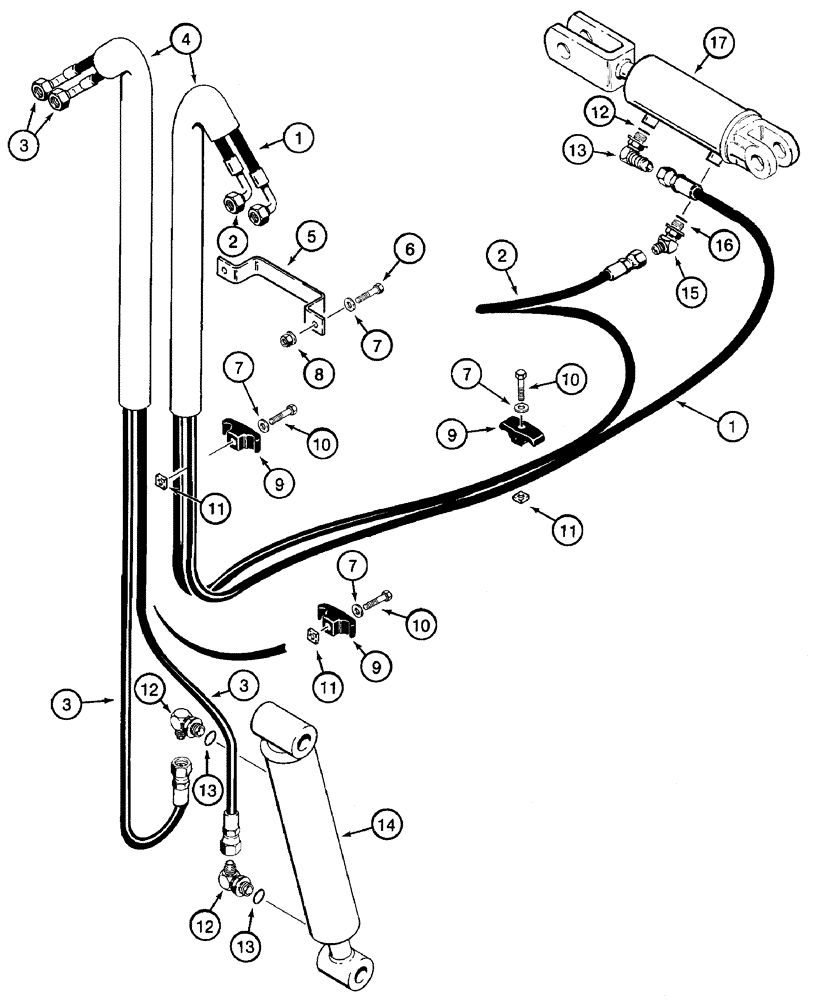

Запчасти Case 460 (8-036) - BACKFILL BLADE HYD. CIRCUIT, FRONT BULKHEAD PLATE TO BLADE LIFT & TILT CYLS., SIX-WAY BACKFILL BLADE (08) - HYDRAULICS

1

H438495

HOSE

- 1538 mm (60-1/2 inch) long, front bulkhead plate to backfill blade tilt cylinder, rod end

1шт.

2

H438496

HOSE

- 1380 mm (54-5/16 inch) long, front bulkhead plate to backfill blade tilt cylinder, closed end

1шт.

3

H438497

HOSE

- 978 mm (38-1/2 inch) long, front bulkhead plate to backfill blade lift cylinder, rod and closed ends

2шт.

4

H436615

LINING

SLEEVE - nylon, tilt and lift cylinder hoses

2шт.

5

H438472

BRACKET

- hose retaining

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

5шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

H438314

CLAMP

- hose

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

11

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

3шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 13

3шт.

14

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list figure 8-38, see figure 9-16 for mounting

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 16

1шт.

17

H673747

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 89 mm (3-1/2 inch) stroke, backfill blade tilt, parts list figure 8-42, see figure 9-16 for mounting

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
