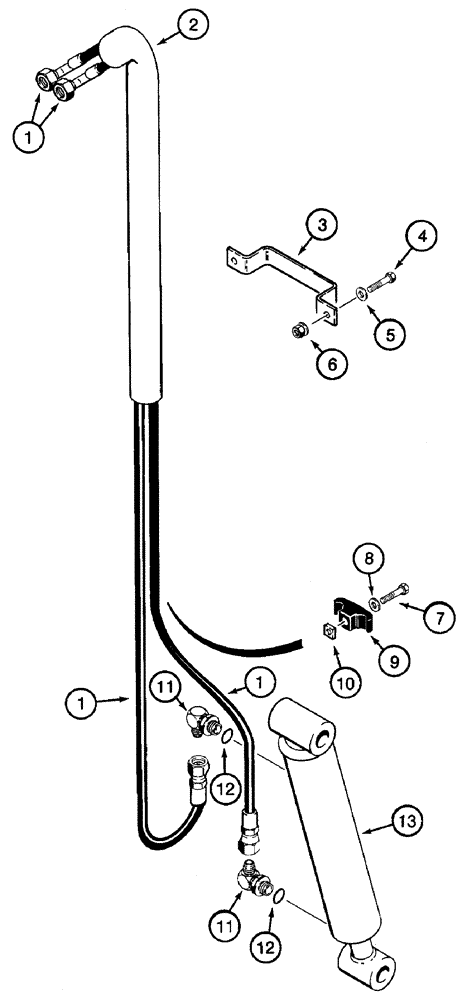

Запчасти Case 460 (8-034) - BACKFILL BLADE HYD. CIRCUIT, FRONT BULKHEAD PLATE TO BLADE LIFT CYLINDER, FOUR-WAY BACKFILL BLADE (08) - HYDRAULICS

1

H438497

HOSE

- 978 mm (38-1/2 inch) long, front bulkhead plate to backfill blade lift cylinder, rod and closed ends

2шт.

2

H436615

LINING

SLEEVE - nylon, lift cylinder hoses

1шт.

3

H438472

BRACKET

- hose retaining

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

9

H438314

CLAMP

- hose

1шт.

10

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 12

2шт.

13

H674312

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 235 mm (9-1/4 inch) stroke, backfill blade lift, parts list figure 8-38, see figure 9-14 for mounting

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
