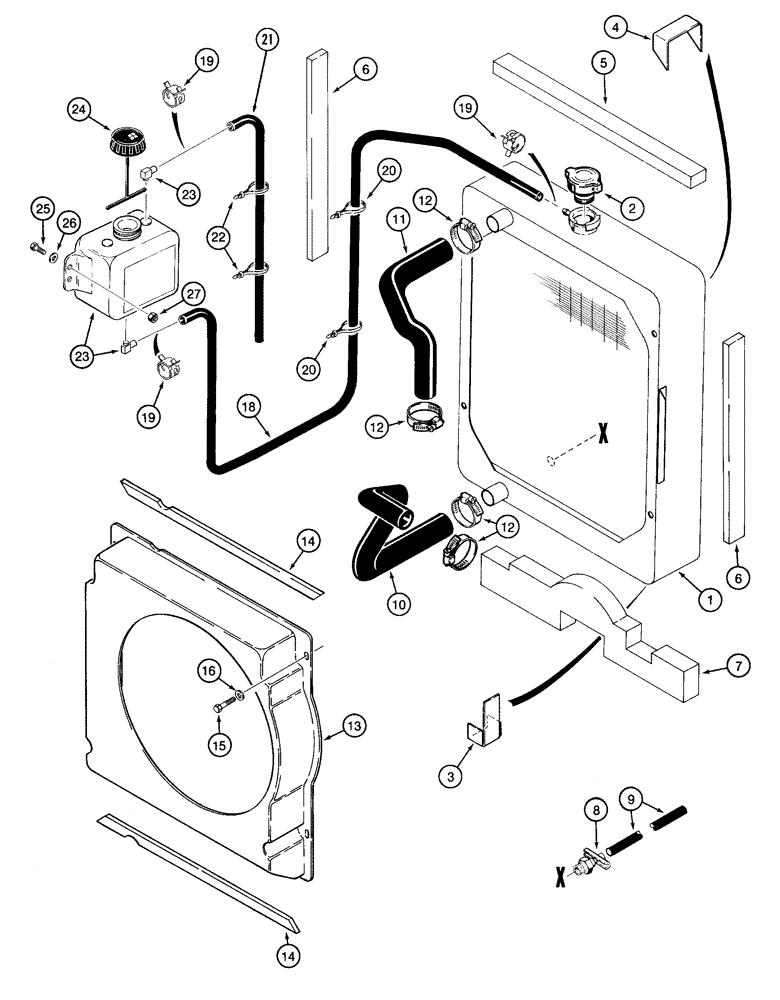

Запчасти Case 460 (2-02) - RADIATOR MOUNTING AND COOLANT RECOVERY SYSTEM (02) - ENGINE

1

111474A2

RADIATOR

- engine coolant

1шт.

2

D61885

CAP

- radiator, 7 PSI

1шт.

3

108454A1

PAD

- mounting, lower radiator

2шт.

4

108455A1

PAD

- mounting, upper radiator

2шт.

5

107167A1

BAFFLE

- radiator, upper

1шт.

6

107166A1

BAFFLE

- radiator, sides

2шт.

7

107165A1

BAFFLE

- radiator, lower

1шт.

8

H434809

COCK, DRAIN

VALVE - drain, radiator drain

1шт.

9

114514A1

HOSE,9.65 mm ID x 600.00 mm

RADIATOR HOSE, , Drain 9.65 mm ID x 600.00 mm

1шт.

10

117082A1

RADIATOR HOSE,28.60 mm ID, 32.00 mm ID x 239.00 mm

Lower 28.60 mm ID, 32.00 mm ID x 239.00 mm

1шт.

11

117081A1

RADIATOR HOSE,32.00 mm ID x 219.00 mm

Upper 32.00 mm ID x 219.00 mm

1шт.

12

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

4шт.

13

117925A1

SHROUD

- fan

1шт.

14

A173165

SEALING STRIP

- adhesive-backed, 485 mm (19 inch) long, fan shroud

2шт.

15

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

16

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

18

H433707

HOSE

- 1575 mm (62 inch) long, cut from S120317X bulk hose, radiator to coolant recovery bottle, see below

1шт.

19

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, retaining

2шт.

20

H119628

MOUNTING CLIP

STRAP - tie

2шт.

21

109397A1

HOSE

- 610 mm (24 inch) long, overflow

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

23

138189A1

RESERVOIR

BOTTLE - coolant recovery

1шт.

24

1547924C1

CAP

- recovery bottle

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

26

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

4шт.

27

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

S120317X

HOSE

- bulk, 8 (5/16) ID x 7620 mm (300 inch) long

1шт.
