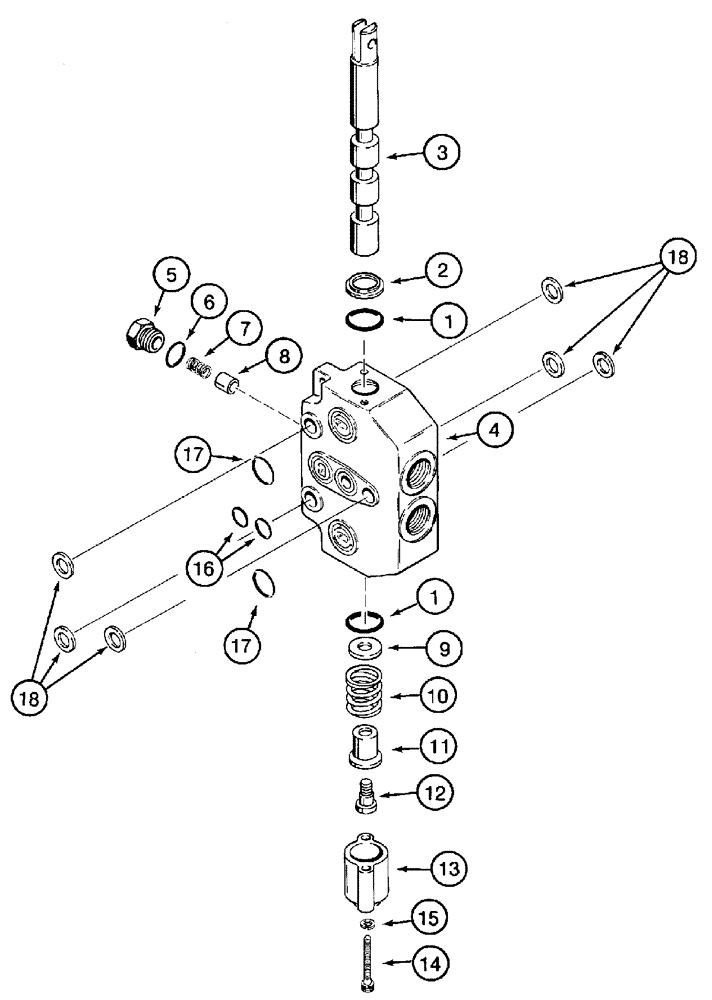

Запчасти Case 460 (8-026) - ATTACHMENT CONTROL VALVE ASSEMBLY, H674409, ATTACHMENT LIFT AND AUXILIARY SECTIONS (08) - HYDRAULICS

H674409

VALVE

ASSEMBLY - control, attachment, parts list figures 8-20 - 8-28, includes: Refs. 1 - 18

1шт.

100414A1

KNIFE SECTION

SECTION ASSEMBLY - attachment lift and auxiliary, includes: Refs. 1 - 15

2шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, includes: Refs. 5 - 8

1шт.

5

H438231

PLUG

- load check, includes: Ref. 6

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

100416A1

KIT

- spring center, includes: Refs. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - return

1шт.

10

N9539

TENSION SPRING

SPRING - centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

4шт.

17

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

4шт.

18

128531A1

SHIM

- 0.001 inch thick, between sections

6шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
