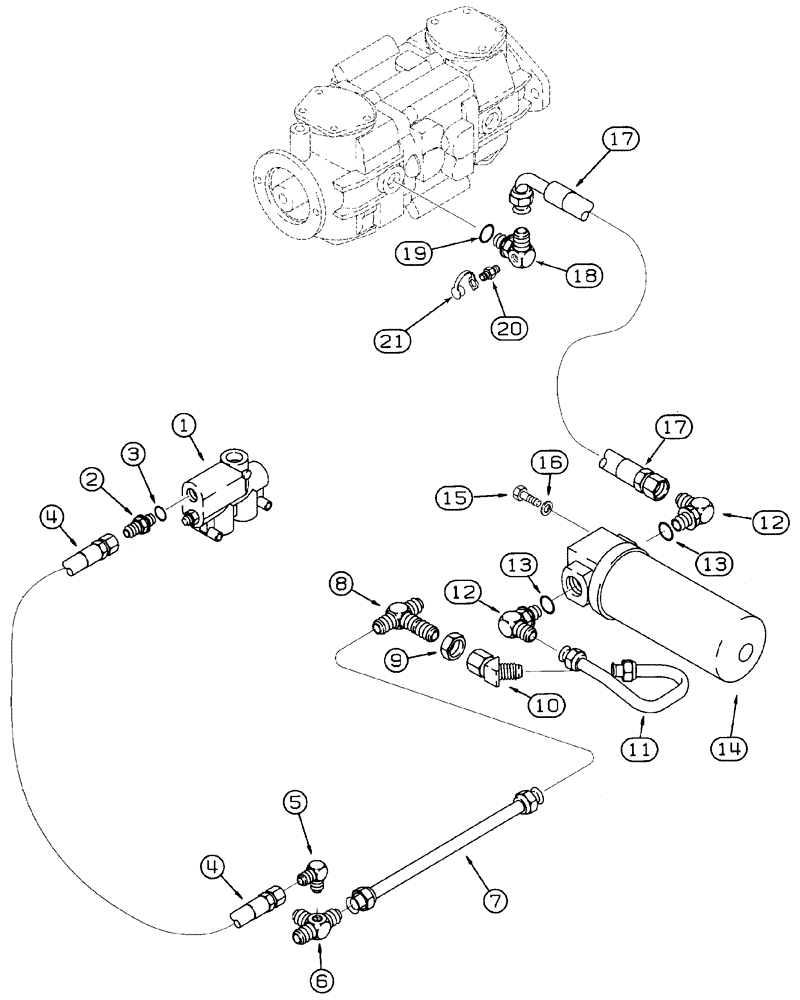

Запчасти Case 460 (8-016) - BASIC HYDRAULIC CIRCUIT, RETURN FILTER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672904

VALVE

ASSEMBLY - priority flow divider, parts list figure 5-12, see figure 5-6 for mounting

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

107760A1

HOSE

- 1130 mm (44-1/2 inch) long, priority flow control valve to return tee

1шт.

5

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT

1шт.

6

H438131

ADAPTER

TEE - special, return

1шт.

7

104422A1

TUBE,19.1 mm OD, 382 mm Length

- return tee to filter tee

1шт.

8

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.

9

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

10

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree, 1-1/16-12 inch flare x swivel

1шт.

11

107752A1

TUBE,19.1 mm OD, 179, 132 mm Length

- elbow to return filter inlet

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, includes: Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

14

D125507

FILTER

ASSEMBLY - hydraulic oil, parts list figure 8-18

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

17

120435A1

HOSE ASSY.

HOSE - 381 mm (15 inch) long, return filter to tandem pump

1шт.

18

106587A1

ELBOW

- 90 degree, special, includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

H434164

COUPLING

COUPLER - quick check

1шт.

21

H434163

DUST CAP

CAP - dust

1шт.
