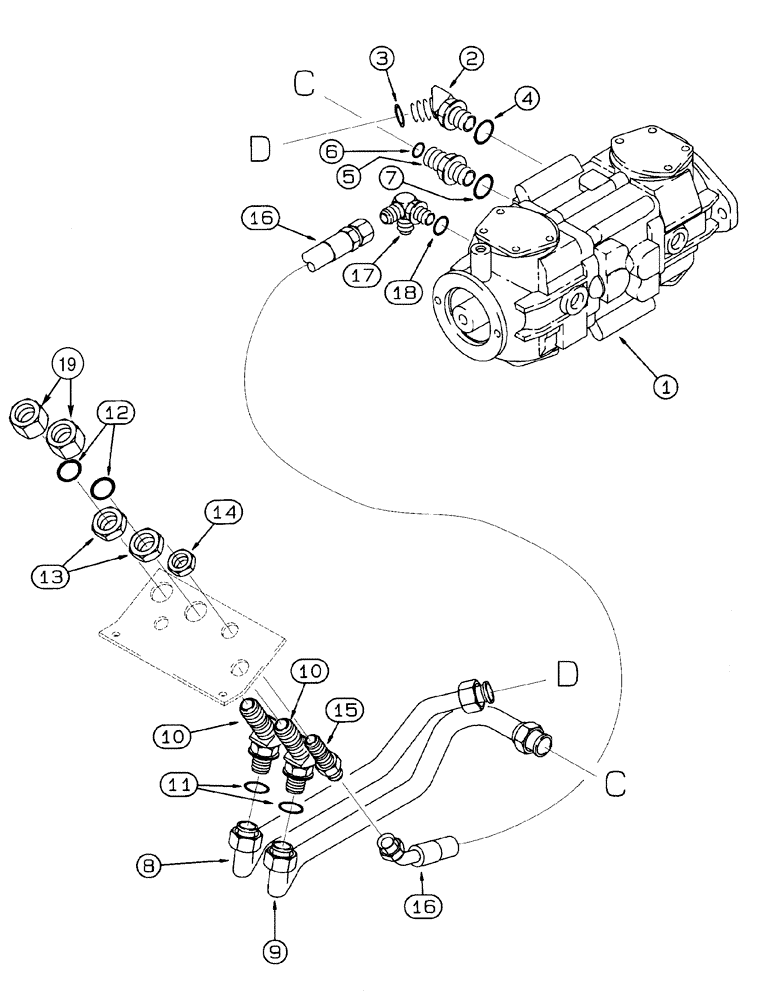

Запчасти Case 460 (8-012) - BASIC HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

113598A1

PUMP

ASSEMBLY - tandem, parts list figures 6-16 - 6-22, see figure 6-8 for mounting

1шт.

2

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 45 degree, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring, includes: Refs. 3 anf 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

5

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Refs. 6 and 7 1 7/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

8

119213A1

TUBE

- tandem pump "C" port to rear bulkhead plate for attachment drive "high loop"1

1шт.

9

119215A1

TUBE,25.4 mm OD, 576.8, 92.1 mm Length

- tandem pump "D" port to rear bulkhead plate for attachment drive "low loop"1

1шт.

10

201-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

- 45 degree, 1-7/16-12 face blkhd x 1-5/16 inch adj O-ring, includes: Refs. 11 and 12

2шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end

1шт.

13

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

NUT - hex, lock, bulkhead, 1-7/16 inch NF

2шт.

14

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

15

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

16

121364A1

HOSE ASSY.

HOSE - 500 mm (19-11/16 inch) long, case drain, rear bulkhead plate adapter to tandem pump

1шт.

17

124915A1

TEE

- special, includes: Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

201-901

CAP,1 7/16"-12 ORFS

- hex, 1-7/16-12 inch face seal, used when circuit to pump is disconnected

1шт.
