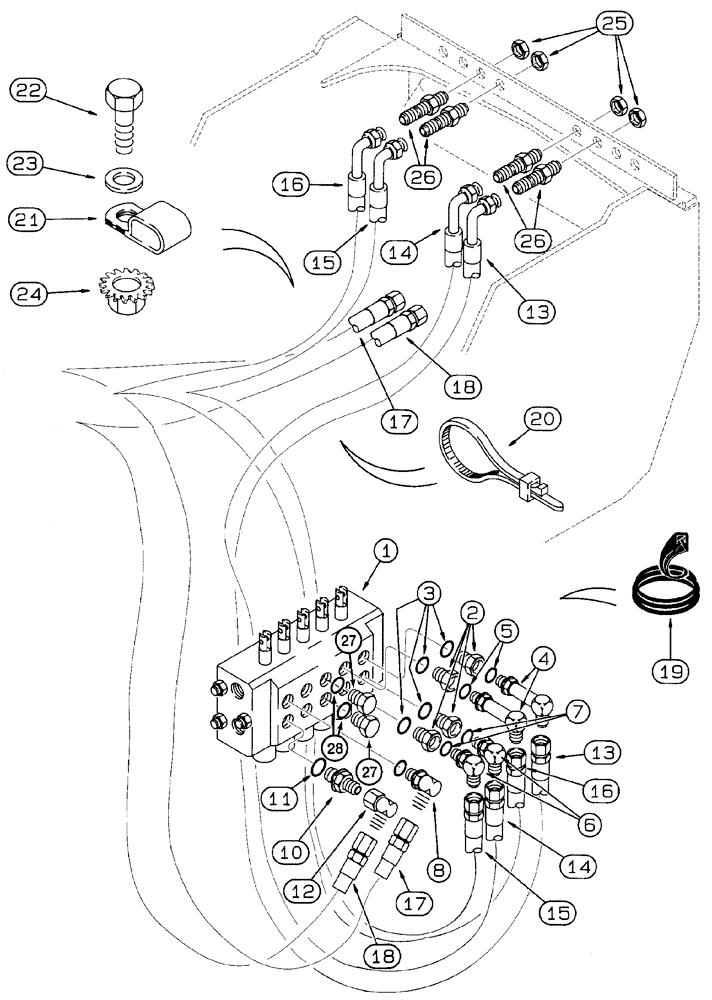

Запчасти Case 460 (8-008) - BASIC HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE TO FRONT BULKHEAD, PLATE FOR BACKFILL HYDRAULICS (08) - HYDRAULICS

1

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list figures 8-20 - 8-28, see figure 8-6 for mounting

1шт.

2

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, includes: Ref. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree long, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 5

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, includes: Ref. 7

2шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 9

1шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, includes: Ref. 11

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

13

107619A1

HOSE

- 2058 mm (81 inch) long, attachment control valve to front bulkhead plate, backfill blade tilt cylinder circuit, rod end

1шт.

14

107620A1

HOSE

- 2032 mm (80 inch) long, attachment control valve to front bulkhead plate, backfill blade tilt cylinder circuit, closed end

1шт.

15

107620A1

HOSE

- 2032 mm (80 inch) long, attachment control valve to front bulkhead plate, backfill blade lift cylinder circuit, closed end

1шт.

16

107621A1

HOSE

- 2134 mm (84 inch) long, attachment control valve to bulkhead plate, backfill blade lift cylinder circuit, rod end

1шт.

17

107622A1

HOSE

- 2426 mm (95-1/2 inch) long, attachment control valve to backfill blade angle cylinder, right-hand rod end

1шт.

18

107622A1

HOSE

- 2426 mm (95-1/2 inch) long, attachment control valve to backfill blade angle cylinder, left-hand rod end

1шт.

19

H438326

MOLDING

- hose protection

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

21

A180154

CLAMP

- P-type

2шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

4шт.

26

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

4шт.

27

214389

PLUG,3/4" - 16 ORB

Center spool, Includes Ref. 28 Hex Hd, 3/4"-16 ORB

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
