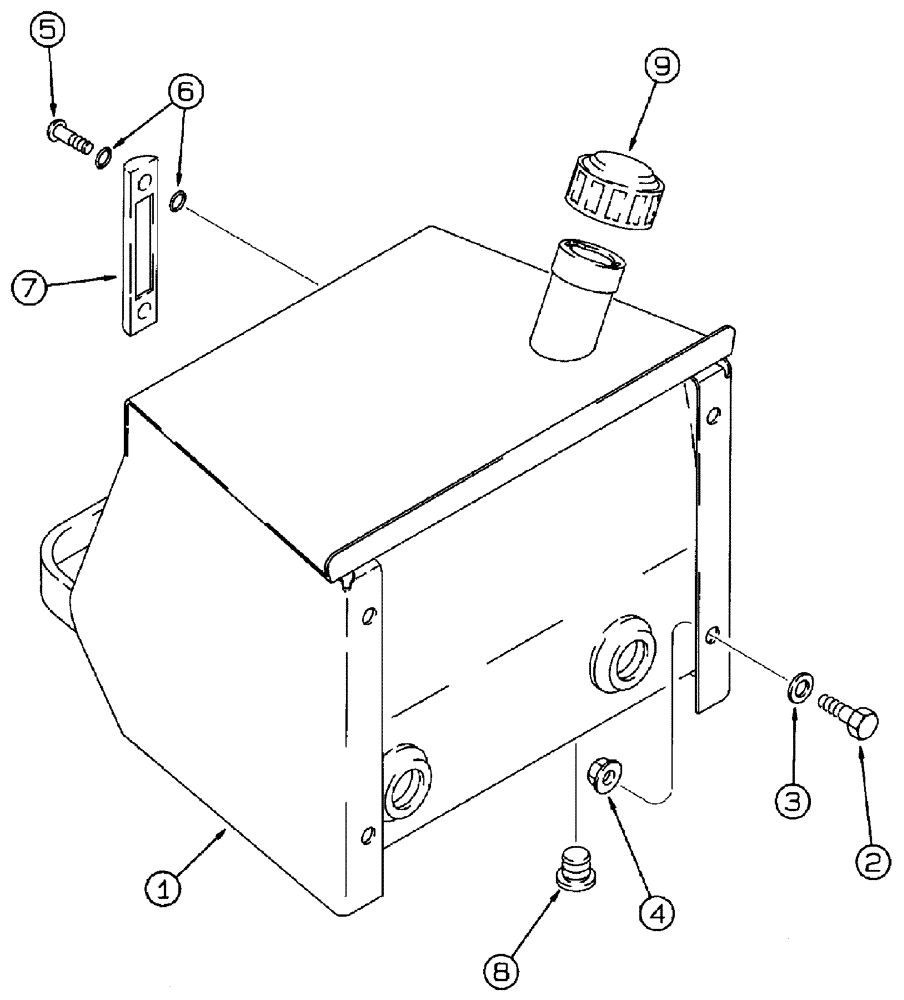

Запчасти Case 460 (8-002) - HYDRAULIC OIL RESERVOIR (08) - HYDRAULICS

1

116194A2

RESERVOIR

- hydraulic oil, includes: Refs. 5 - 7 and Ref. 9

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic oil, includes: Refs. 5 - 7

1шт.

5

N13213

BOLT

BOLT - special, sight gauge

2шт.

6

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge -112, Cl 7, .487" ID x .103" Thk

4шт.

7

NSS

NOT SOLD SEPARAT

GAUGE - sight

1шт.

8

217-442

PLUG,3/4" - 14

- hex socket headless, 3/4 inch PT

1шт.

9

257448A1

CAP

- with filter, reservoir fill

1шт.
