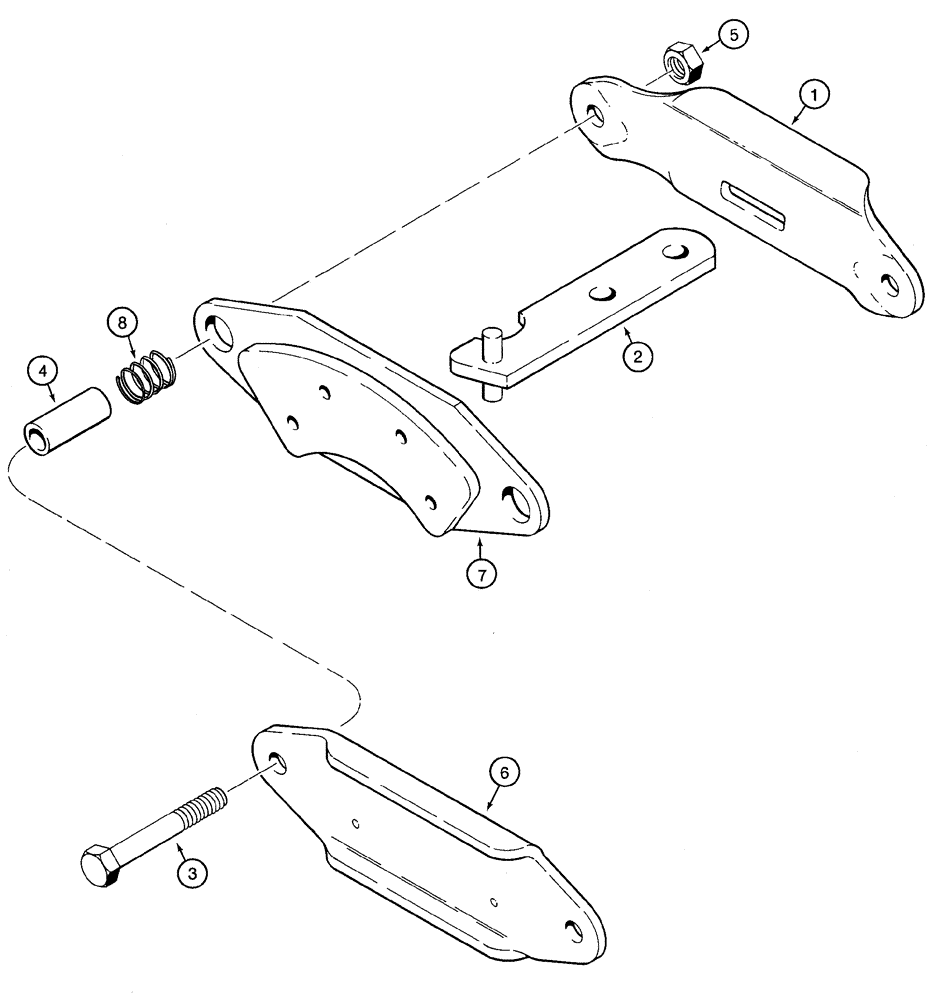

Запчасти Case 460 (7-4) - DISC BRAKE CALIPER ASSEMBLY, H673926 (07) - BRAKES

H673926

CALIPER

ASSEMBLY - parking brake, includes: Refs. 1 - 8

1шт.

1

H437100

BRACKET

- caliper mounting

1шт.

2

H437101

LEVER

- actuating

1шт.

3

414-536

BOLT,Hex, 5/16" - 24 x 2-1/4", Gr 5

- hex, 5/16 NF x 2-1/4 inch

2шт.

4

NSS

NOT SOLD SEPARAT

SPACER - bracket

2шт.

5

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

2шт.

6

H437102

HOLDER

PAD - parking brake, outside

1шт.

7

H437104

HOLDER

PAD - parking brake, inside

1шт.

8

H437103

SPRING

- brake shoe return

2шт.
