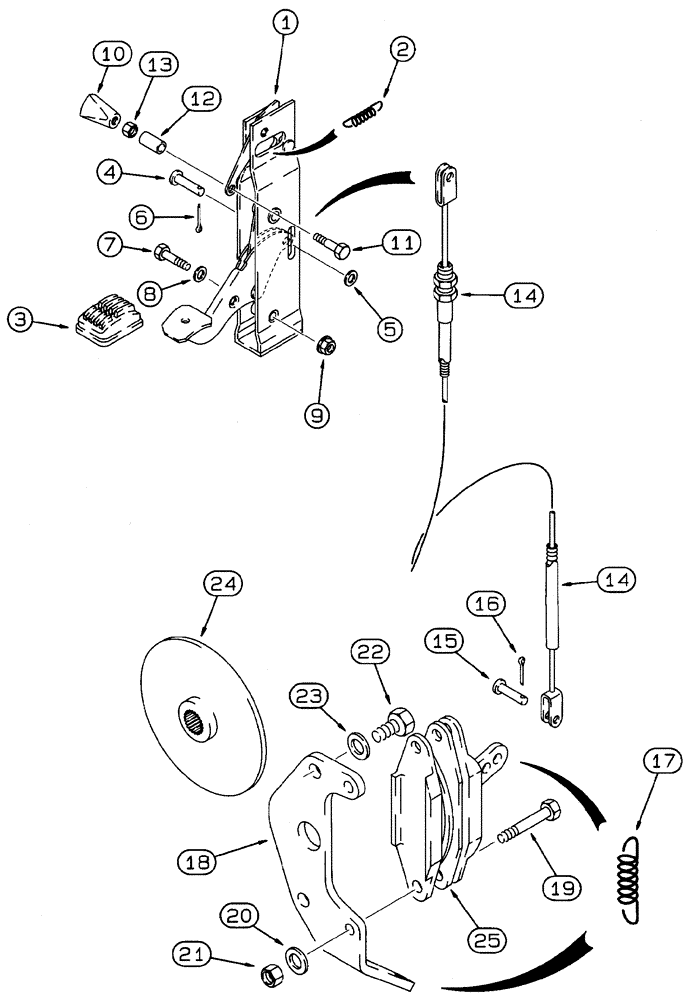

Запчасти Case 460 (7-2) - PARKING/EMERGENCY BRAKE (07) - BRAKES

120662A1

LEVER

ASSEMBLY - parking brake, foot pedal actuated, includes: Refs. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake, foot pedal actuated

1шт.

2

102687A1

SPRING

- brake lever return

1шт.

3

N8204

PAD

- foot, rubber

1шт.

4

102688A1

PIN

- clevis, special

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- flat, 11/32 x 11/16 x 1/16 inch, hardened

8шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

10

F64341

KNOB

- parking brake release

1шт.

11

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

12

H404723

SPACER

- parking brake release knob

1шт.

13

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

14

120346A1

CABLE

- parking brake

1шт.

15

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN - clevis, 5/16 x 1 inch

1шт.

16

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

17

H358069

SPRING

- return, pedal

1шт.

18

128744A1

PLATE

BRACKET - caliper mounting

1шт.

19

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

24

129223A1

BRAKE DISC

DISC - parking brake

1шт.

25

H673926

CALIPER

ASSEMBLY - parking brake, parts list figure 7-4

1шт.
