(8-47A) - BACKHOE CONTROL VALVE - H674299 (DUKES), CONTROL LEVERS

Запчасти Case 360 (8-47A) - BACKHOE CONTROL VALVE - H674299 (DUKES), CONTROL LEVERS (08) - HYDRAULICS

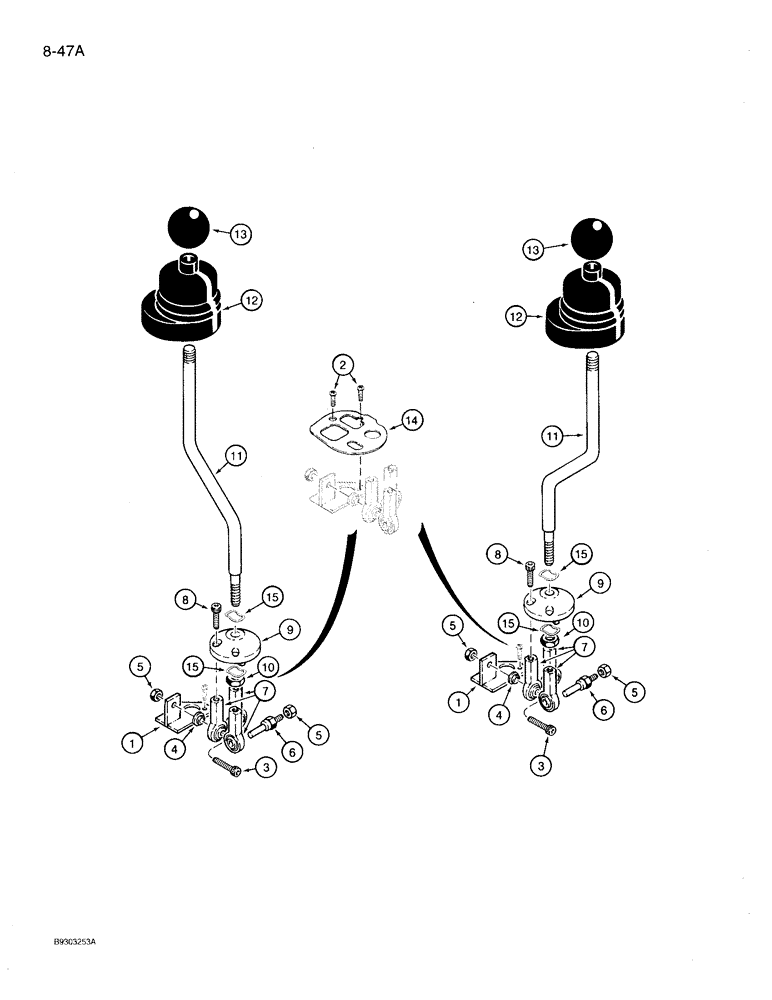

Схема запчастей Case 360 - (8-47A) - BACKHOE CONTROL VALVE - H674299 (DUKES), CONTROL LEVERS (08) - HYDRAULICS
15
4
7
8
2
9
11
12
4
1
1
10
13
5
15
14
11
13
5
6
3
5
9
12
15
7
10
15
8
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674299

VALVE

backhoe control, four spool, complete parts lists on Figs. 8-47A - 8-47G, Incl. Ref. 1 - 15

1шт.

1

H438950

LARGE PLATE

PLATE, LARGE end rods

2шт.

2

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

4шт.

Ref #2 - Replaced by 62-31010 Bolt, Grade 8, #10NF X .625" see NTC SB 003 97

1шт.

3

62-32516

HEX SOC SCREW,1/4"-28 x 1"

4шт.

4

H438035

SPACER

bracket

4шт.

5

H438943

JAM NUT

hex, jam, special

6шт.

6

H438038

STUD

actuator

1шт.

7

H438025

ROD

end

6шт.

8

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

6шт.

9

H438944

ADAPTER

lever

2шт.

10

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

11

H438022

LEVER

backhoe control

2шт.

12

H438946

PROTECTOR

control lever

2шт.

13

L50256

KNOB

control lever

2шт.

14

H438951

LARGE PLATE

PLATE, LARGE boot retaining

2шт.

15

H438956

WASHER

spring

4шт.
