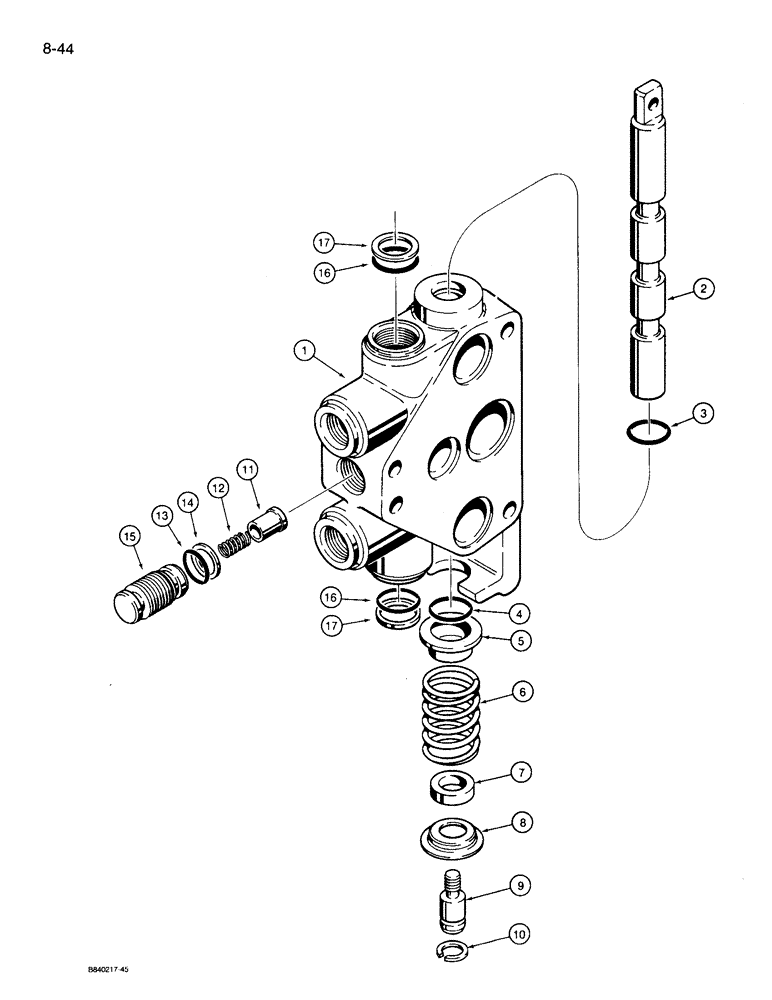

Запчасти Case 360 (8-44) - BACKHOE CONTROL VALVE - BOOM AND DIPPER SECTION (08) - HYDRAULICS

H513630

SECTOR

boom and dipper, Incl. Ref. 1 - 17

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

Some late production valve spools are a one piece design and do not require the use of Ref. 9 spool end screw.

1шт.

3

F37887

O-RING

spool, control end

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

spool, spring end

1шт.

5

H52902

CAP

centering spring, upper

1шт.

6

F59118

SPRING

centering

1шт.

7

H746164

WASHER

spacer

1шт.

8

F59116

WASHER

SEAT - centering spring, lower

1шт.

9

H210831

SCREW

spool end, if used

1шт.

Some late production valve spools are a one piece design and do not require the use of Ref. 9 spool end screw.

1шт.

10

A27804

CIRCLIP,#50, .392" Dia, E-Type

#50, .392" Dia, E-Type

1шт.

11

FH730366

PLUNGER

load check

1шт.

12

FH730374

SPRING

load check

1шт.

13

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

load check

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup, load check O-ring

1шт.

15

H52886

BODY

load check

1шт.

16

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

relief valves and plugs

2шт.

17

A35698

BACK-UP RING

O-ring

2шт.
