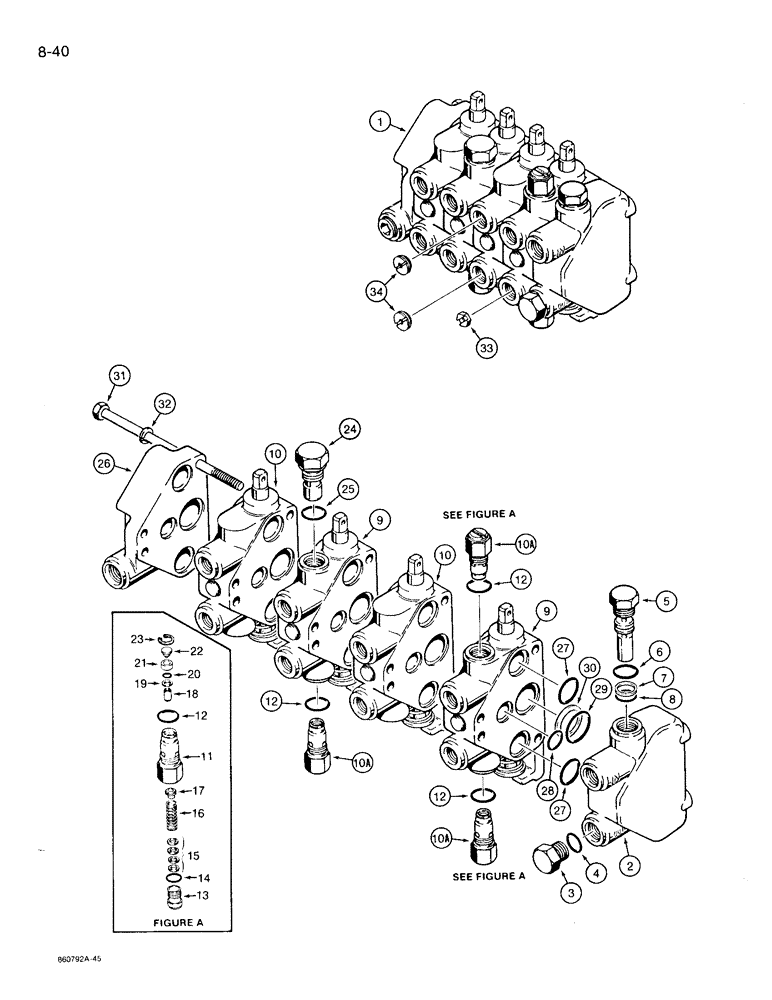

Запчасти Case 360 (8-40) - BACKHOE CONTROL VALVE - H672691, USED ON MODELS WITH DUAL LEVER CONTROLS (08) - HYDRAULICS

1

H672691

VALVE

control, backhoe, four spool, Incl. Ref. 1 - 34

1шт.

2

H52852

PLATE ASSY.

end, inlet

1шт.

3

86512512

PLUG,7/8" - 14 ORB

Inlet section, Incl. Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Plug

1шт.

F88054

VALVE

relief, end section, 2000 psi, Incl. Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - relief, end section, 2000 psi

1шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large, relief valve

1шт.

7

G32626

RING

backup, small O-ring

1шт.

8

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

small, relief valve

1шт.

9

H513630

SECTOR

SECTION ASSEMBLY - boom and dipper, parts list Fig. 8-44

2шт.

10

H513648

VALVE

SECTION ASSEMBLY - swing and bucket, parts list Fig. 8-46

2шт.

10a

H351791

VALVE

relief, boom and dipper sections, 3000 psi, Incl. Ref. 11 - 23

3шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve cartridge

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large, relief valve

1шт.

13

H120006

PLUG

adjusting

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

plug

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - .015" (0.38 mm) thick, order N7773 shim

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - .010" (0.25 mm) thick, order N7773 shim

1шт.

15

NSS

NOT SOLD SEPARAT

SHIM - .035" (0.89 mm) thick, order N7773 shim

1шт.

15

N7773

SHIM,.005" Thk

(0.13 mm)

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

18

N8751

SEAT, VALVE

SLEEVE - relief valve

1шт.

19

H745646

RING

backup, sleeve O-ring

1шт.

20

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - pin

1шт.

22

N8752

VALVE POPPET

relief valve

1шт.

23

F19952

X

RING - snap, valve

1шт.

24

H52837

PLUG

dipper section, Incl. Ref. 25

1шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

plug

1шт.

26

H52803

PLATE ASSY.

SECTION - end, outlet

1шт.

27

H757492

SEAL

between sections, top and bottom, 12 included in kit, 10 used in this application; Part of Seal Reapir Kit, P/N H120097

10шт.

28

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

between sections, small, center, 6 included in kit, 5 used in this application; Part of Seal Reapir Kit, P/N H120097

5шт.

29

R30990

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

between sections, large, center, 6 included in kit, 5 used in this application; Part of Seal Reapir Kit, P/N H120097

5шт.

30

H210849

WASHER

backup, between sections, large O-ring, center, 6 included in kit, 5 used in this application; Part of Seal Reapir Kit, P/N H120097

5шт.

31

H220483

BOLT

tie, hex head, 3/8" - 18 NC x 7-3/4"

4шт.

32

192-21

LOCK WASHER,3/8"

4шт.

33

H746859

PLATE ASSY.

ORIFICE - boom section, .1360" (3.45 mm) diameter

1шт.

34

N14083

LARGE PLATE

PLATE, LARGE ORIFICE - swing section, 0.078" (1.98 mm) diameter

2шт.

H120097

SEAL ASSY.

KIT - seal repair, between sections, Incl. Ref. 27, 28, 29 and 30

1шт.
