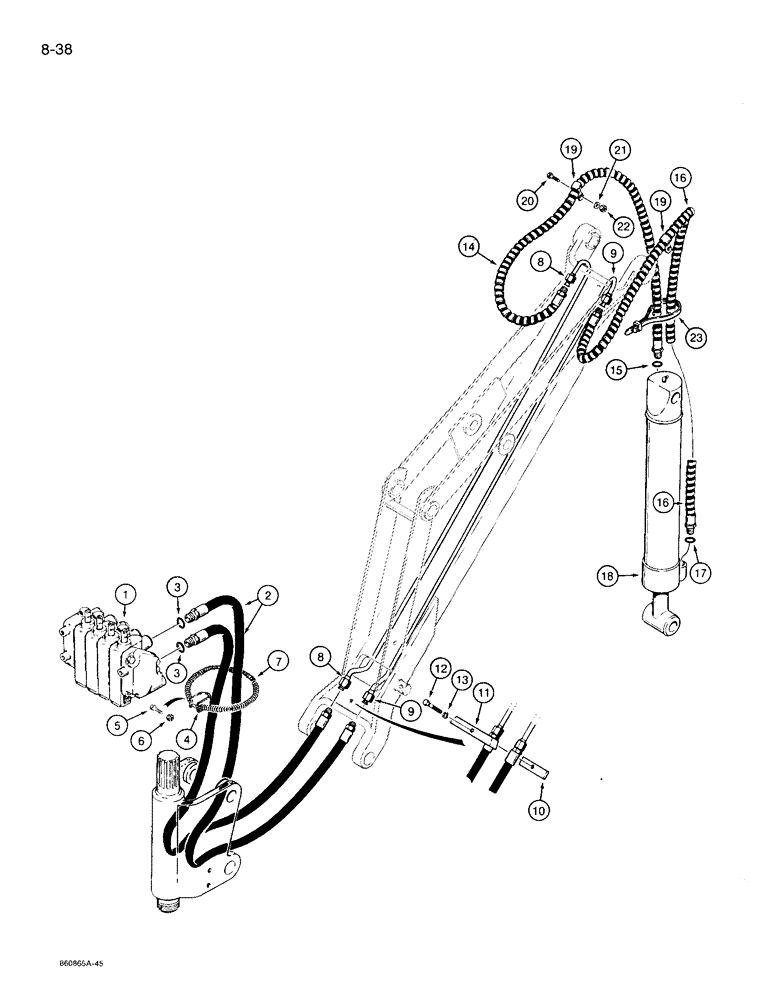

Запчасти Case 360 (8-38) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

control, backhoe, for correct assembly and parts list information, see Fig. 8-30

1шт.

2

H433413

HYDRAULIC HOSE,9.52 mm ID x 1067.00 mm, SAE 100R2

From control valve, Incl. Ref. 3

2шт.

Two lever backhoe control hydraulics are shown in the illustration. Reverse hoses at backhoe control valve on models with four lever backhoe controls; the hose at thevalve upper port goes to the cylinder rod end and the hose at the valver lowerport goes to the cylinder closed end.

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H52571

CLAMP

spring retaining

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

6

232-4114

LOCK NUT,1/4"-20, GC

1шт.

7

H52548

SPRING

hose retainer

1шт.

8

H593376

TUBE,0.5" OD

attaches to control valve lower port hose, left hand side of boom

1шт.

9

H593384

TUBE,12.7 mm OD

attaches to control valve upper port hose, right hand side of boom

1шт.

10

H51748

CLAMP

hose, at lower boom end

1шт.

11

H52589

CLAMP

hose, at lower boom end

1шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13

492-11031

LOCK WASHER,5/16"

1шт.

14

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

Special, To closed end of bucket cylinder, Incl. Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

Special, to Rod End of Bucket Cylinder, Includes Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

bucket, parts list Fig. 8-50

1шт.

19

H51763

CLAMP

hose

2шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

22

232-4114

LOCK NUT,1/4"-20, GC

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.
