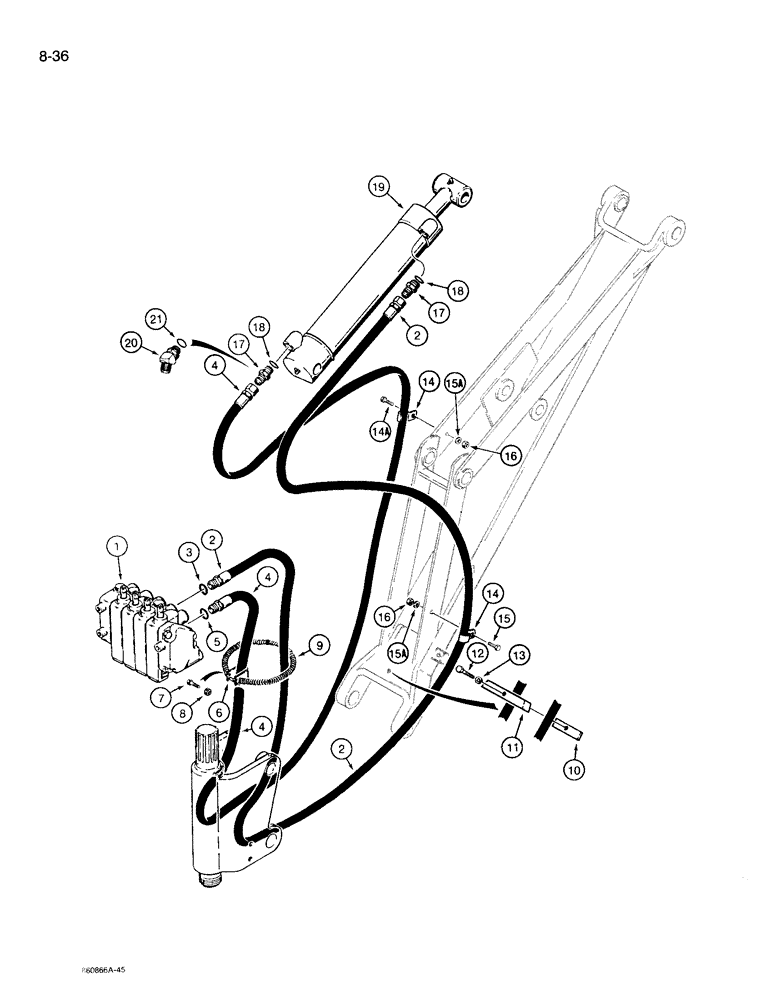

Запчасти Case 360 (8-36) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

control, backhoe, for correct assembly and parts list information, see Fig. 8-30

1шт.

2

H268524

HYDRAULIC HOSE,9.52 mm ID x 1473.20 mm, SAE 100R1

From control valve upper port to rod end of dipper cylinder, Incl. Ref. 3

1шт.

Two lever backhoe control hydraulics are shown in the illustration. Reverse hoses at backhoe control valve on models with four lever backhoe controls; the hose at thevalve upper port goes to the cylinder rod end and the hose at the valver lowerport goes to the cylinder closed end.

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H357855

HOSE,0.38" ID x 75.00", SAE 100R1

From Control Valve Lower Port to Closed End of Dipper Cylinder, Includes: Ref. 5

1шт.

Two lever backhoe control hydraulics are shown in the illustration. Reverse hoses at backhoe control valve on models with four lever backhoe controls; the hose at thevalve upper port goes to the cylinder rod end and the hose at the valver lowerport goes to the cylinder closed end.

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H52571

CLAMP

spring retaining

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

8

232-4114

LOCK NUT,1/4"-20, GC

1шт.

9

H52548

SPRING

hose retainer

1шт.

10

H51748

CLAMP

hose, at lower boom end

1шт.

11

H52589

CLAMP

hose, at lower boom end

1шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13

492-11031

LOCK WASHER,5/16"

1шт.

14

H51763

CLAMP

hose

2шт.

14a

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15a

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

16

232-4114

LOCK NUT,1/4"-20, GC

2шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

strRefef. 18

1-2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

dipper, parts list Fig. 8-50

1шт.

20

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj. O-ring boss, Replaces Ref 17 adapter at cylinder closed end, Incl. Ref 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
