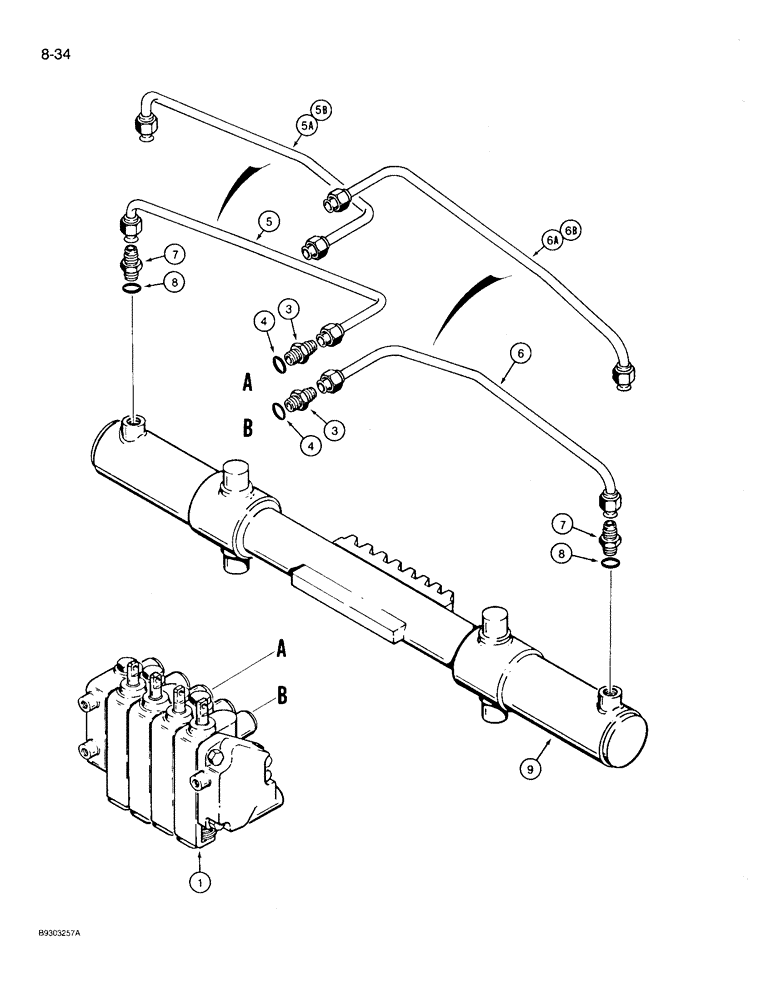

Запчасти Case 360 (8-34) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

control, backhoe, for correct assembly and parts list information, see Fig. 8-30

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

H672148

TUBE ASSY.,12.7 mm OD

swing cylinder, left-hand, used on models with four lever backhoe controls, if used

1шт.

5a

H672778

TUBE,12.7 mm OD

swing cylinder, left-hand, used on models with dual lever backhoe controls, prior to P.I.N. JAF0091962, if used

1шт.

5b

H674604

TUBE,12.7 mm OD

swing cylinder, left-hand, used on models with dual lever backhoe controls, P.I.N. JAF0091962 and after, if used

1шт.

6

H672147

TUBE ASSY.,12.7 mm OD

swing cylinder, right-hand, used on models with four lever backhoe controls, if used

1шт.

6a

H672777

TUBE,12.7 mm OD

swing cylinder, right-hand, used on models with dual lever backhoe controls, prior to P.I.N. JAF0091962, if used

1шт.

6b

H674605

TUBE,12.7 mm OD

swing cylinder, right-hand, used on models with dual lever backhoe controls, P.I.N. JAF0091962 and after, if used

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

H514125

CYLINDER ASSY.

swing, parts list Fig. 8-48

1шт.
