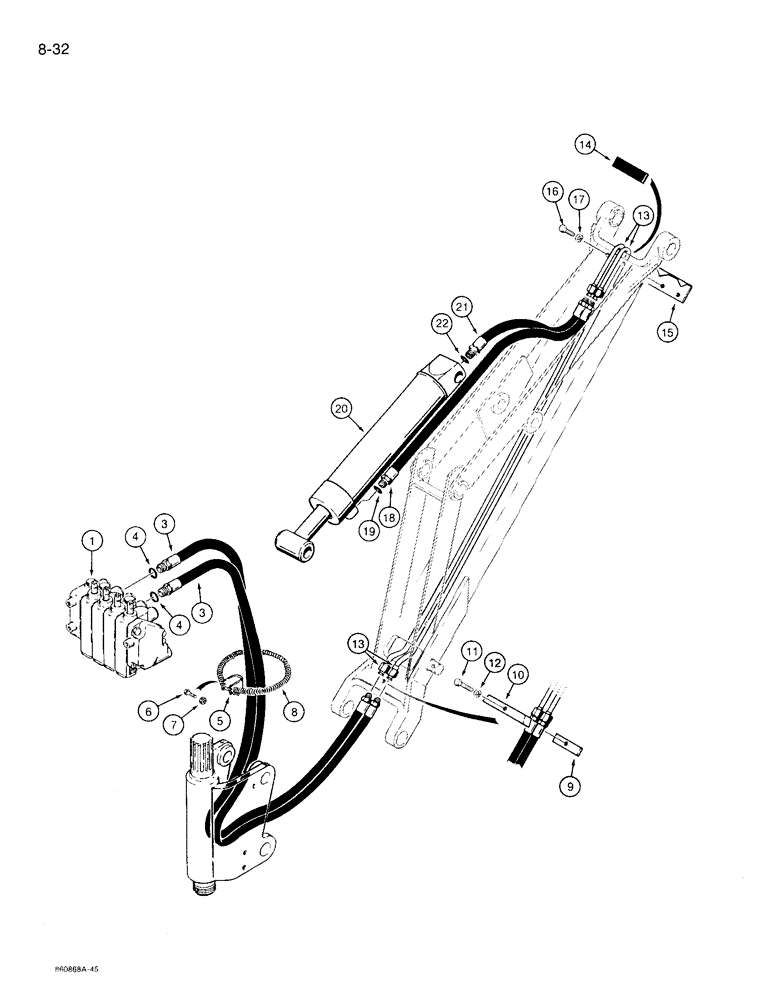

Запчасти Case 360 (8-32) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

control, backhoe, for correct assembly and parts list information, see Fig. 8-30

1шт.

3

H433413

HYDRAULIC HOSE,9.52 mm ID x 1067.00 mm, SAE 100R2

From control valve, Incl. Ref. 4

2шт.

Two lever backhoe control hydraulics are shown in the illustration. Reverse hoses at backhoe control valve on models with four lever backhoe controls; the hose at thevalve upper port goes to the cylinder rod end and the hose at the valver lowerport goes to the cylinder closed end.

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

H52571

CLAMP

spring retaining

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

7

232-4114

LOCK NUT,1/4"-20, GC

1шт.

8

H52548

SPRING

hose retainer

1шт.

9

H51748

CLAMP

hose, at lower boom end

1шт.

10

H52589

CLAMP

hose, at lower boom end

1шт.

11

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

492-11031

LOCK WASHER,5/16"

1шт.

13

H593392

TUBE,0.5" OD

boom

2шт.

14

H61069

FLAP

anti-wear, rubber

1шт.

15

H51755

CLAMP

tube, at upper boom end

1шт.

16

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

To boom cylinder rod end, Incl. Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

backhoe boom, parts list Fig. 8-50

1шт.

21

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

To Boom Cylinder Closed End, Incl. Ref. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
